Grove 4-Inch Wheels And Brakes

Select Model:
40-10140-102
Quantity
Add to Wishlist

Overview

These 4" wheels are manufactured to the same exacting standards as the Grove 5" & 6" wheels. Manufactured from aerospace grade aluminum.

They feature genuine Timken tapered roller bearing with felt grease seals.
    • 40-1 wheel has 2-3/4" tire bead width.
    • 40-3 wheel has 2-1/4" tire bead width.

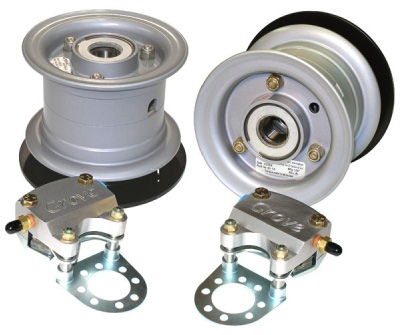

Grove Kit Number 40-101 shown.

Specifications

Grove Kit No.
Wheel No.
Static Load Rating lbs.
Kinetic Energy Ft-LBs
Disc Thickness Inches
Braking Torque Inch-LBS
Caliper No.
Piston Dia. Inches
Brake Pad
No.
Axle
Dia. Inches
Weight lbs.*
PN
Price Per Set**
40-101
40-3A
700
72,000
0.160
1,384
39-1A
1x1.250
66-106
.75
4.05
06-00858
40-102
40-1A
700
72,000
0.160
1,832
39-2A
1x1.438
66-106
.75
4.16
06-00859

Note: Braking torque calculated at 600 psi brake line pressure.
*Ref 1: Weight for one wheel, disc and caliper assembly
**Ref 2: Set includes two wheel assembly
