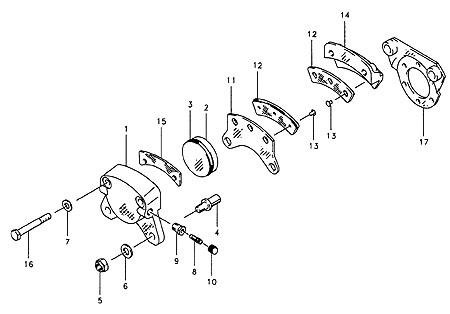

Cleveland 30-9 500 X 5 Complete Brake Assembly
(Hover to zoom | Use mouse wheel for +/-)
| # | Cleveland PN |
Desc. | 30- 9* |
30- 9A (2)* |
30- 9C* |
30- 9D* |
30- 181A* |
PN | Price | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| - | 091-00702 | Cylinder Assy. | 1 | - | - | 1 | - | 06-01203 | $1970.00 | |
| 1 | 061-00601 | Cylinder | 1 | - | - | 1 | 1 | 061-00601 | $1637.00 | |
| - | 092-00200 | Piston | 1 | 1 | 1 | 1 | 1 | 06-01206 | $357.00 | |
| 2 | 062-00300 | Piston | 1 | 1 | 1 | 1 | 1 | 062-00300 | $320.00 | |
| 3 | 101-02300 | O-ring (MS28775-218) | 1 | 1 | 1 | 1 | 1 | 101-02300 | $2.96 | |
| 4 | 069-00400 | Anchor bolt | 2 | 2 | 2 | 2 | 2 | 069-00400 | $88.75 | |
| 6 | 095-10400 | Washer (AN960-4-16) | 2 | 2 | 2 | 2 | 2 | 95-10400 | $23.50 | |
| 7 | 095-10200 | Washer (AN960-416L) | 2 | 2 | 2 | 2 | 2 | 95-10200 | $0.08 | |
| 8 | 079-00300 | Screw- Bleeder | 1 | 1 | 1 | 1 | 1 | 079-00300 | $33.50 | |
| 9 | 081-00100 | Seat- Bleeder | 1 | 1 | 1 | 1 | 1 | 081-00100 | $71.75 | |
| 10 | 183-00100 | Cap- Bleeder | 1 | 1 | 1 | 1 | 1 | 183-00100 | $13.70 | |
| - | 073-00300 | Pressure Plate Assy. | 1 | 1 | 1 | 1 | 1 | 073-00300 | $506.00 | |
| 11 | 063-00500 | Pressure Plate | 1 | 1 | 1 | 1 | 1 | 063-00500 | $366.00 | |
| 12 | 066-10600 | Lining | 1 | 1 | 1 | 1 | 1 | 66-106 | $27.50 | |
| 13 | 105-00200 | Rivet | 3 | 3 | 3 | 3 | 3 | 06-02908 | $0.07 | |
| - | 074-00200 | Back Plate Assy. | 1 | 1 | 1 | 1 | 1 | 074-00200 | $759.00 | |
| 14 | 064-00500 | Back Plate | 1 | 1 | 1 | 1 | 1 | 064-00500 | $366.00 | |
| 15 | 068-00401 | Shim | - | - | - | - | 1 | 68-00401 | $1257.00 | |
| 16 | 103-12100 | Bolt | 2 | 2 | 2 | 2 | - | 06-00011 | $3.35 | |
| 17 | 075-00800 | Torque Plate Assy. | 1 | 1 | 1 | - | 1 | 075-00800 | $867.00 | |
| - | 075-19300 | Torque Plate Assy. | - | - | - | 1 | - | 06-01201 | $1778.00 |
