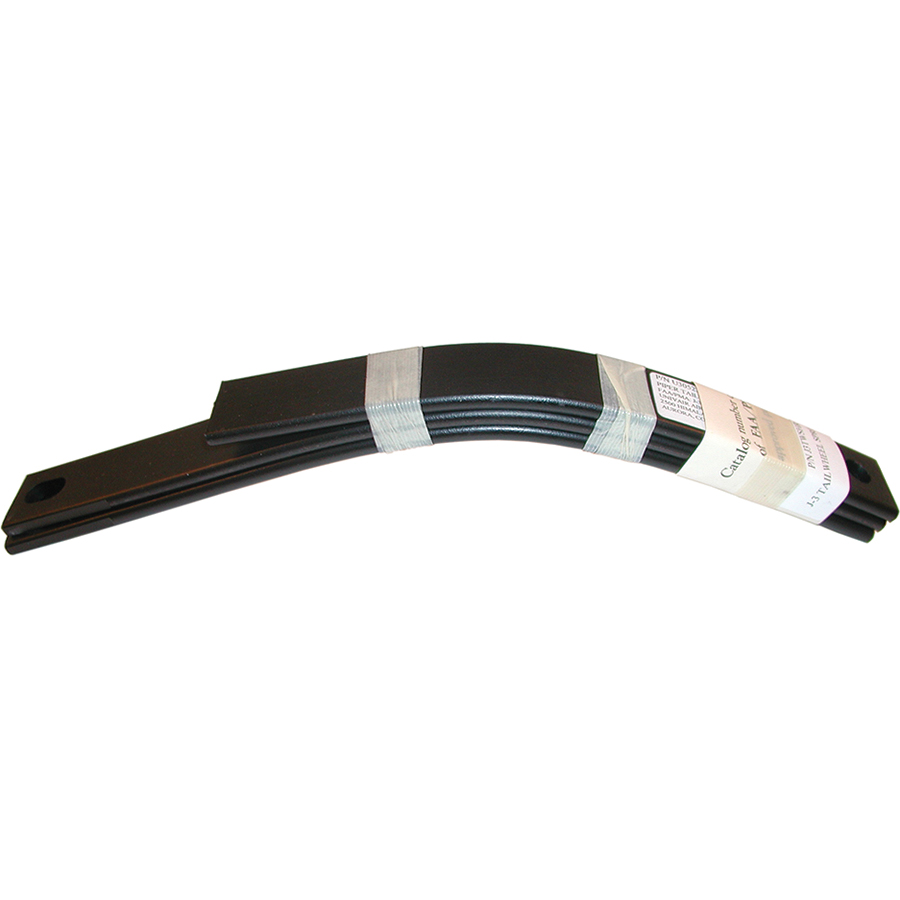

- Photo may represent series and not specific product
- SHARE
| Set No. |
Spring Width (in.) |
Hole Dia. Fuselage End (in.) |
Hole Dia. Tail Wheel End (in.) |
Distance Between Bolt Centers (in.) |
Orig. App. | Wt. Lbs. |
No. of Springs |
PN | Price | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1-1/4 | 7/16 | 3/8 | 12-1/2 | Piper J-3 (serial numbers 10339 and up), L-4, PA-11, PA-12, PA-14 (up to serial number 204) | 3-1/8 | 3 | 06-14200 | $312.00 | |
| 2 | 1-1/2 | 3/8 | 3/8 | 11-1/4 | T-Craft BC- 12D | 2-3/4 | 3 | 06-14300 | $339.00 | |
| 3 | 1-1/2 | 3/8 | 7/16 | 14-1/4 | Aeronca 7AC, 11AC | 3-1/2 | 3 | 06-14400 | $333.00 | |
| 4 | 1-1/2 | 3/8 | 3/8 | 14-7/8 | Home builts | 1-3/4 | 1 | 06-14500 | $142.75 | |
| 5 | 1-1/4 | 5/16 | 3/8 | 11-3/4 | Luscombe | 3-1/2 | 4 | 06-14600 | $434.00 | |
| 6 | 1-1/4 | 5/16 | 3/8 | 11-3/4 | Luscombe | 1-1/2 | 1 | 06-14700 | $111.75 | |
| 7* | 1-1/2 | 5/8 | 7/16 | 13-1/2 | Cessna 120-140 | 4 | 5 | 06-14800 | $473.00 | |
| 8 | 1-1/2 | 5/8 | 7/16 | 13-1/2 | Cessna 120-140 | 1-1/2 | 1 | 06-14900 | $141.75 | |
| 9 | 1-1/2 | 5/8 | 7/16 | 13-1/2 | Cessna 170 | 5 | 5 | 06-15000 | $544.00 | |
| 10 | 1-1/2 | 5/8 | 7/16 | 13-1/2 | Cessna 170 | 1-3/4 | 1 | 06-15100 | $264.95 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
FAA/PMA approved subcomponents. Individual for a PA-17 however NOT approved for a PA-15.
(*)= Multiple bends |
Reviews
The springs are perfect. Replace the hardware as well.
Verified Purchase
Tailwheel Leaf Spring Set # 1
Can be drilled with a good drill bit
Verified Purchase
Tailwheel Leaf Sprng#4 056-4
worked great. arrived as ordered
Verified Purchase
Tailwheel Leaf Sprng#4 056-4
Worked great for my Starduster Too.
Verified Purchase
Tailwheel Leaf Sprng#4 056-4
Exactly what I needed for my all aluminum taildragger. A perfect fit.
Verified Purchase
Tailwheel Leaf Sprng#4 056-4
Verified Purchase
Tailwheel Leaf Sprng#4 056-4
This part replaced the original on a Cessna 150A Lowes taildragger conversion correctly.
Verified Purchase
Tailwheel Leaf Spring # 7
Exact replacement. Made a big improvement.
Verified Purchase
Tailwheel Leaf Spring # 3
Perfect
Verified Purchase
Tailwheel Leaf Sprg#10 U0542106
Exactly what I needed an delivered on time
Verified Purchase
Tailwheel Leaf Spring # 9
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 06-14200 has 3 leafs.
Part # 06-14500 Approx Dims: 1/4" thick, 5056 alloy
.262 thick, 1-1/2" wide
15" center to center, 16-7/8" overall length
Approx 1.8 lbs.
It is 13" center to center measured along the outside of the curve.
These are made of 5056A aluminum alloy. It does contain magnesium.
