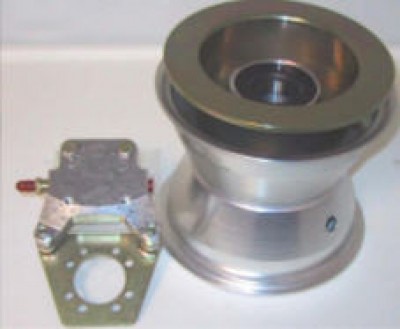

Matco Cnc Spun Wheels Internal Caliper Mh6B
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
MH6B The MH6B is a 6 inch wheel with 5.375 inch width with an additional 1.24 inch caliper spacing. Bearing spacing is 2 inches and axle spacing is 2 inches. The total weight of this wheel and brake assembly is 4.4 pounds. The bearing axle diameter is 0.625 inches. Features The NEW MH6B is now produced as a CNC spun wheel with a Tenzalloy hub center and a NEW higher torque caliper. The CNC spun wheel ensures the highest accuracy and repeatability without the problems associated with stamping wheels from aluminum. These wheels have a specially designed shoulder to ensure better seal and support of the tire bead seat and the material thickness is 30% greater than the older stamped wheel. The MH6B and MH6B.75 have a precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue. This wheel features an upgraded four inch brake assembly using the new PH-4XT caliper housing. (The four inch brake is available in three configurations for excellent braking performance to match the aircraft needs) All braking systems now available on the MH6B utilize caliper machined from bar stock instead of the older cast housings! When ordering parts for MH wheels using the new caliper, be sure to use the WHLB4XT parts listed in compatible products. For the old caliper, use the WHLB4. Tire/Tube Because the MH6B uses an internal caliper, almost any six inch tire and tube combination can be used with this assembLy. Some of the most popular combinations are 15X600X6 2 ply or four ply tubeless for light use on paved surfaces; the 800X6 for rough and soft field landings; or a 600X6 aircraft tire for a higher profile and clearance. Performance The MH6B is designed for the following standards: Static Capacity: 660 LBS Load Limit: 2000 LBS Maximum Accelerate/Stop Kinetic Energy: 93441 ft-lb Torque Rating (@450 PSI): 1540 in-lb Product Comparison Table Assembly Drawing |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These Matco CNC spun wheels and brakes are priced and sold in pairs.
The 06-16810 uses the 06-00523. The AXLE4 mounts in a socket. The 06-00523 is also available as the 06-00450 which uses either the 06-00529 or the 06-00528. The AXLE8 is socket type and AXLE7 is flange mount.
