MH6B.62D

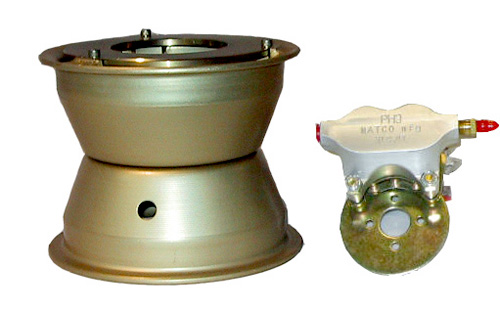

MATCO mfg produces a superior 6 inch wheel and brake assembly for use with aircraft requiring less than 660 lbs per wheel. This model uses 0.625 inch BALL bearings.

The MH6B.62D is a 6 inch wheel with 5.375 inch width with an additional 1.24 inch caliper spacing. Bearing spacing is 2 inches and axle spacing is 2 inches. The total weight of this wheel and brake assembly is 4.65 pounds. The bearing axle diameter is 0.625 inches.

The MH6B is now produced as a CNC spun wheel with a Tenzalloy hub center. The CNC spun wheel ensures the highest accuracy and repeatability without the problems associated with stamping wheels from aluminum. These wheels have a specially designed shoulder to ensure better seal and support of the tire bead seat and the material thickness is 30% greater than the older stamped wheel. The MH6B and MH6B.75 have a precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue. This wheel features an upgraded four inch brake assembly using the dual piston PH-3 caliper housing. (The four inch brake is available in three configurations for excellent braking performance to match the aircraft needs) All braking systems now available on the MH6B utilize caliper machined from bar stock instead of the older cast housings!
