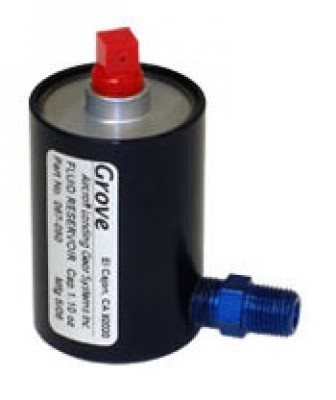

Grove Brake Fluid Reservoir 067-050

$96.75/Each
Quantity
Add to Wishlist
Part# 06-00818
MFR Model# 067-050

Overview

Grove remote reservoirs are quality machined from 6061 billet. Top is held in place with a snap ring with O-ring seal. Supplied with vented 1/8" NPT cap plug. Anodized for corrosion resistance.

Normal installation requires two (one for each master cylnder). Supplied with 1/8" NPT Fitting.

Attaches directly to the master cylinder.

Holds 1.10 fluid ounces

Specifications

  • 1.98" High
  • 1.38" Dia
  • 1.5 oz

Reviews

Arrived on time, well packaged. Quality of product excellent.

Lee T Verified Purchase

Grove Brake Fluid Reservoir 067-050

March 19, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the shown fitting attached to this Grove brake fluid reservoid 067-050?

This will have an AN911-1D fitting attached to 06-00818. The dimensions of this fitting are 1/8" NPT thread with a full length of 31/32", +/- 1/32". The width of the nut is .438", +.003/-.004. The ID is .203, +.003/-.004.

Q: What kind of Loctite be required,when 1/8 NPT Fitting install to reservoir?

Loctite is not recommended to be used with NPT fittings. The taper on the fitting will seal the connection.
