| No. | Description | Req’d. | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 1 | Vent Screw Gasket | 1 | 1159 | $8.50 | |
| 2 | Bracket, R.H. Unit | 1 | 1220 | $537.00 | |
| 3 | Bracket, L.H. Unit | 1 | 1232 | $482.00 | |
| 4 | Diaphragm Pad | 1 | 2003-1 | $80.75 | |
| 5 | Spring | 1 | 1256 | $33.50 | |
| 6 | Vent Screw | 1 | 1258 | $33.50 | |
| 7 | Compression Cover | 1 | 2728 | $714.00 | |
| 8 | Piston | 1 | 1383 | $134.75 | |
| 9 | Pedal, R.H. | 1 | 1712 | $518.00 | |
| 10 | Pedal, L.H. | 1 | 1714 | $480.00 | |
| 11 | Diaphragm | 1 | 2844 | $80.75 | |
| 12 | Screw MS35265-45 | 10 | AN500-A8-8 | $0.45 | |
| 13 | Nut | 1 | AN365-1032 | $0.28 | |
| 14 | Bolt AN3-20A | 1 | 18431 | $0.83 |
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview

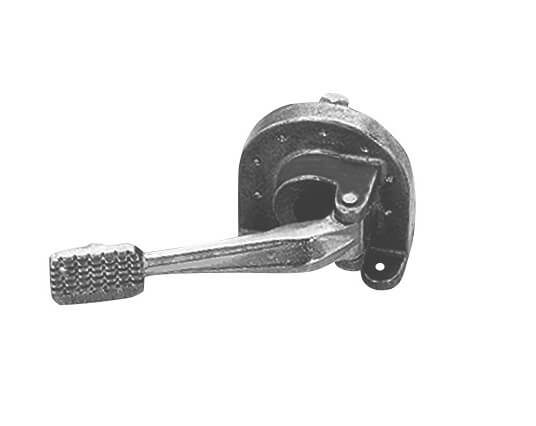

The Scott Brake Master Cylinder is one of the largest selling aircraft master cylinders in the world. Installed as standard equipment on Piper and other aircraft for many years, these units provide rugged and virtually trouble-free service with few wearing parts. One pair of master cylinders – one left hand (1248H) and one right hand (1260H) – is required on most aircraft. On the Piper Tri-Pacer, however, only one left master cylinder (1248H) is required.
|
Specifications
|
 |

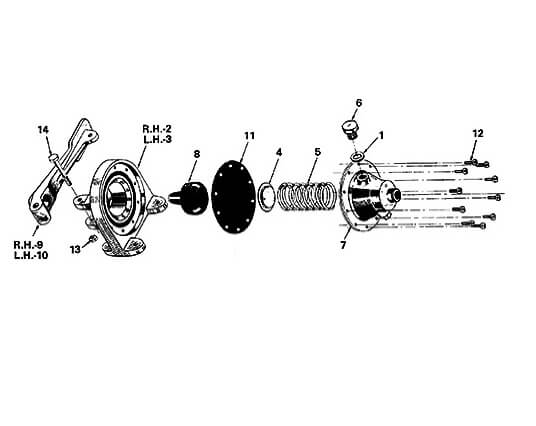

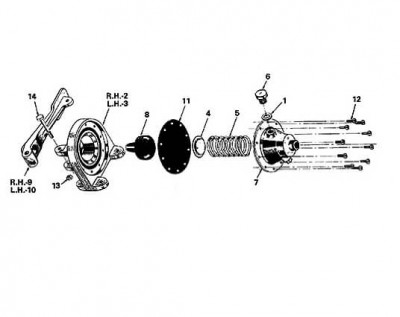

| No. | Description | No. | Description | |
| Master Cylinder, LH | 7 | Compression Cover | ||
| Master Cylinder, RH | 8 | Piston | ||
| 1 | Vent Screw Gasket | 9 | Pedal, RH Unit | |
| 2 | Bracket, RH Unit | 10 | Pedal, LH Unit | |
| 3 | Bracket, LH Unit | 11 | Diaphragm | |
| 4 | Diaphragm Pad | 12 | Screw MS35265-45 | |
| 5 | Spring | 13 | Nut | |
| 6 | Vent Screw | 14 | Bolt AN3-20A |
