Part Number | Description | Image No. |
---|---|---|
079-00300 | CLEVELAND BLEEDER SCREW 079-00300 | Figure No. 12 |
Detailed image diagram and parts list for 30-55 brake assembly. |

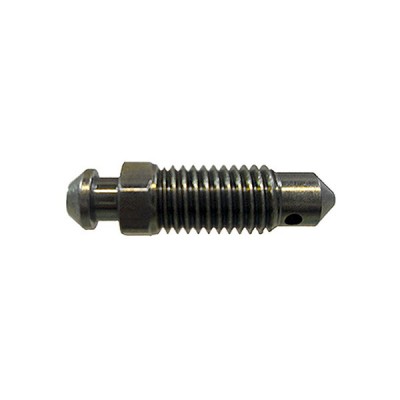

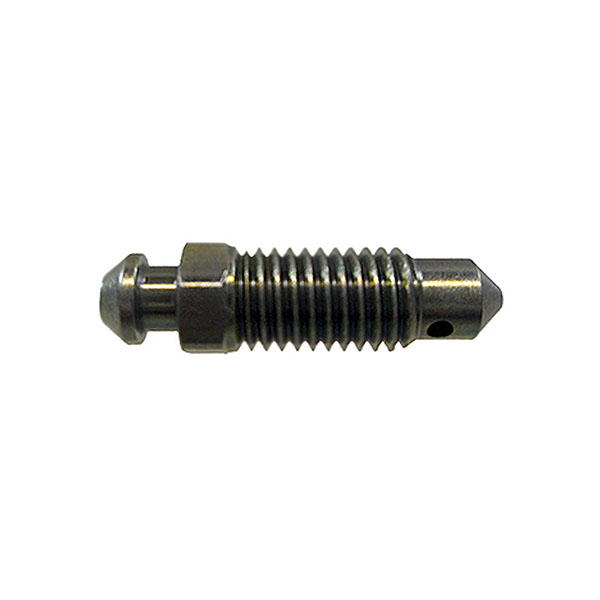

CLEVELAND BLEEDER SCREW 079-00300
CLEVELAND BLEEDER SCREW 079-00300
CLEVELAND BLEEDER SCREW 079-00300
Simple working part for Cleveland brake cylinders. My original screws worn and rounded off from age.
CLEVELAND BLEEDER SCREW 079-00300
Not a bad price for brand new Cleveland parts.
Good product. Well made. Protective packaging. Installed easily.
Bought calipers and anchor bolts, already had orings and pads. Old calipers had mysteriously cracked believed to be due to over tightening bleeder valve on a previous repair. But no ones owning up to it. Anchor bolts are press fit so purchased just to be sure install went smooth. Took like 30 minutes to install and hour cleaning everything. Everything fit perfectly test flight today.
The wheel cylinder castings were cracked at the brake line fitting on my 1968 Cessna 150. I looked into replacing just the cylinder casting, but it was not significantly less costly to buy verses buying the entire brake assembly. The Cleveland 30-63A brake assembly comes with everything I needed to renew the brakes on my airplane. It is a good value verses buying the individual parts, and is an exact replacement for my existing wheel brakes.
Arrived early in excellent condition and fit perfectly and operated as advertised. Thanks again for another job well done.
Perfect fit. Transferred the fittings and solved my bleeding issue.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The 30-63A brake assembly will come with everything pictured already assembled and ready for install. They are priced and sold individually.
Yes, part number 66-105 will come with rivets.
Per the manufacturer: The only difference between the 2 brake assemblies: The 30-63A used on the Cessna 150s, 172s some, 182G - 182N, and others. The 30-63B: No usage listed on this assembly.
The 064-00500 is a back plate used on several Cleveland brake assemblies, including 30-9 and 30-164.
These are priced and sold individually.
The pads are 66-105. The alternatives to the Cleveland pads are Rapco and APS. The Rapco pads are RA66-105 and the APS pads are APS66-105 (Part# 07-20204). The rivets are Cleveland # 105-00200 and can be purchased under part # 05-11599, 06-00351 or 07-20100 (100 pack).
Yes, the 66-105 linings will include the rivets. If you would like to order the pads only, use part # 66-105-1.
Not all of the parts, there are some differences. Cylinder assy, bolts and washers are different.
You would use AN6230B-2.
You, would use 5606 with these brakes.
