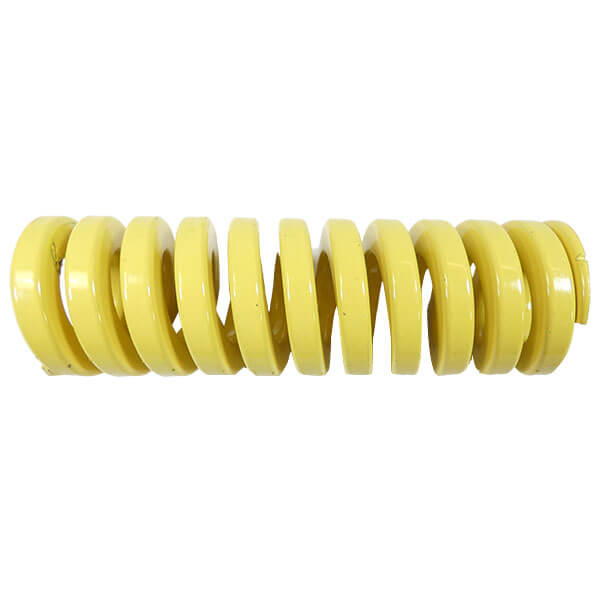

Shock Absorber Coil Rings

$132.75/Each
Quantity
Add to Wishlist
Part# 06-01367
MFR Model# LAA9322436

Overview

High-pressure springs fabricated from alloy steel for top performance and long spring life.

The Claude Gray shock absorber design has been service-proven on the EAA Biplane, Miniplane, Pitts and others. Length 6", 2" hose size. Wt. 4-1/2 lbs. per pair. Spring deflection 0.7" per 1,000 lb. force.

Specifications

  • Free Length: 6 Inch
  • Hole Diameter (in.): 2"
  • Wt. 4-1/2 lbs. per pair.
  • Spring deflection 0.7" per 1,000 lb. force.
  • UNSPSC: 31161905
  • Sub-brand: Danly IEM DieMax XL™
  • Model: 9-3224-36
  • Color: Yellow

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
