Univair U3239A-101 tailwheel spring connector assemblies may be used to replace the existing tailwheel spring connector assemblies on tailwheel equipped Piper Aircraft. The Univair U3239A-101 tailwheel spring connector assemblies replace Piper part number 751 475 or 3239 tailwheel spring connector assemblies. FAA PMA: PA-18, PA-20, PA-25. |
As advertised
Tailwheel Spring Kit 3239
Correct setup for my Cessna 140.
Tailwheel Spring Kit 3239
Installed on my Cessna 140. Working great so far. Installation was tricky because the springs are very stiff. This kit replaced an old Maul anti-shimmy spring setup that wore down and broke at the spring hook. Im optimistic that the thicker gauge steel of these springs will last longer, but metal-metal joints inevitably grind down and fail.
Tailwheel Spring Kit 3239
Tailwheel Spring Kit 3239
Chad at American Champion sent me drawing 3-1818 which shows this part (Aircraft Spruce 06-00008) installed in 8GCBC American Champion Decathalon. Hence, this seems to indicate that they are approved for Decathalon installation
Replaced maule compression springs that were put on in error by previous owner on my c170. They function perfectly.
Tailwheel Spring Kit 3239
These are also used on Scott 3200 tailwheels installed on Cessna 170 and other 100-series airplanes.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The springs are approximately 4-1/2" end to end including the hooks.

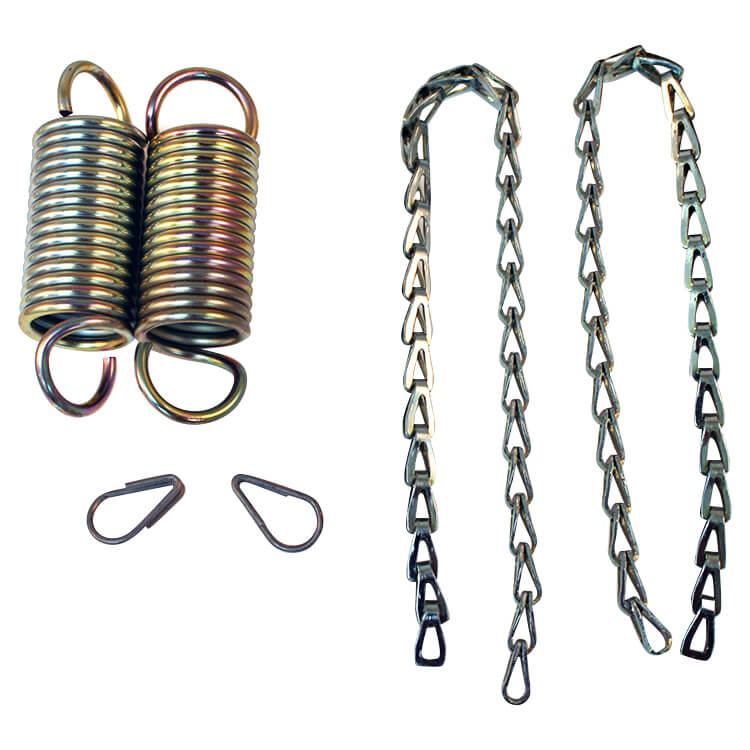

Yes, both springs are included as shown in the photo.
1-5/16"
