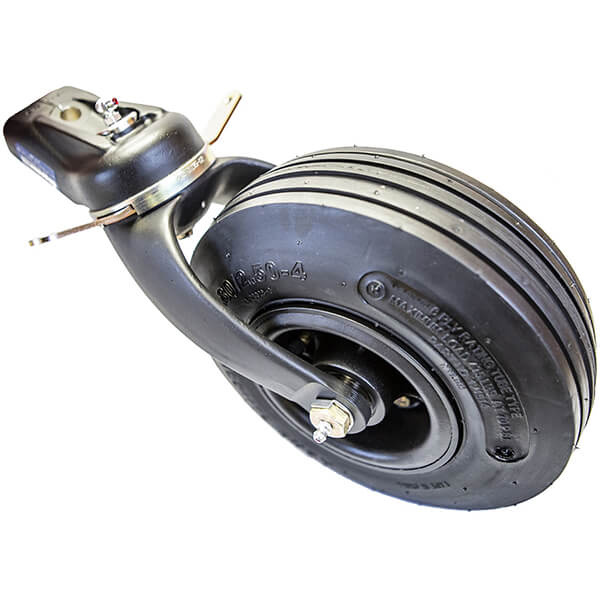

Alaskan Bushwheel 3200 Tailwheel Assembly
Overview
|
8" Standard tailwheel is assembled with 2.80" x 2.50" x 4" tire. Each assembly is greased and ready for installation.
FAA-PMA direct replacement for Scott 3200 Tailwheel assembly. One Year Warranty. ABI-3200 This ABI-3200 Assembly is an FAA-PMA direct replacement for Scott 3200 Assembly. The installer is responsible for ensuring that the assembly is installed in accordance with the original equipment installation instructions. The difference between the 3200 & 3224A is the steering arm and dust caps. The 3224A comes with the heavy duty steering arm (ABI-3214T). ABI-3200-3 The ABI-3200-3 is the direct replacement for the Scott 3200-3. This assembly utilize the ABI-800613, 2-hole bracket assembly instead of the ABI-3216-00 ABI-3224A STANDARD TAILWHEEL ASSY. (with 3214T Heavy Duty Arm Assy.) ABI-3200B ABI 3200B TUNDRA TAILWHEEL ASSY. |
Parts List
**Parts not included in ABI-3200B Assembly
****Parts not icluded in assemblies.
Parts in red are not sold individually
| Item | ABI Part No. | Description | Spruce Part No. |
|---|---|---|---|
| -- | |||
| | |||
| | |||
| | LEAF SPRING ADAPTER 1-3/4" TO 1-1/4" | ||
| | |||
| | |||
| | |||
| | |||
| | |||
STEERING ARM ASSY | |||
| | STEERING ARM ASSY | ||
| | |||
| | LOWER | ||
LOWER | |||
| | |||
| | (Heavy Duty) | ||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
(Heavy Duty / sold in Complete Assembly ONLY) | |||
| | |||
| | |||
| | |||
| | (Heavy Duty) | ||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| | |||
| |
Replacements Parts
Reviews
Verified Purchase
ABI-3200 Tailwheel Assembly
Beautiful Tailwheel. Perfect for my J3!
Verified Purchase
ABI-3200 Tailwheel Assembly
Verified Purchase
ABI-3200 Tailwheel Assembly
very nice top quality ...put it on an air cam
Verified Purchase
ABI-3224A Tailwheel Assembly
very nice product it would be nice if you had a verity of spring steel configurations to mount it .
Verified Purchase
ABI-3224A Tailwheel Assembly
This tail wheel assembly is a top quality part. I fit perfect and the operation on the aircraft was smooth and precise. It solved all my tailwheel shimmy problems.
Verified Purchase
ABI-3200 Tailwheel Assembly
Installation went well, but remember to check if you have the right adapter to fit the width of your tail spring. Too early to tell how well it will hold up, but it looks really solid.
Worked perfect!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The weight of this unit is 8.23lbs
2.80" x 2.50" x 4" tire
This tailwheel is built with a long paw.
This is the single bolt hole version. P/N# 06-01313 is the two hole bolt version.
Yes, this will include the STC.
Yes, the wheel and tire are included.
Per the manufacturer: We do not have any exact data on that, for the most part I would think the airframe or spring would fail due to static load weight before the tailwheel assembly.
You would want ABI-3200-3 our part number 06-01313.
If your leaf spring is 1-1/2" wide then you would need the adapter.
