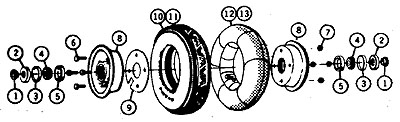

Item No. |
Description | Tire & Wheel Assy PN 2600 (8") |
Tire & Wheel Assy PN 3245-1 (10") |
Part No. | Price | Buy |
---|---|---|---|---|---|---|
1 | Spacer | 2 | 2 | 3227 | $58.75 | |
2 | Retainer, Grease | 2 | 2 | 1863 | $20.50 | |
3 | Spacer | 2 | 2 | 1862 | $23.50 | |
4 | Bearing Cone (A-4050) | 2 | 2 | 13286 | $138.75 | |
5 | Bearing Cup (A-4138) | 2 | 2 | 13287 | $132.75 | |
6 | Bolt | 4 | 4 | 18438 | $0.53 | |
7 | Nut, Self Locking | 4 | 4 | 33478-202 | $0.29 | |
8 | Wheel Half, ABI-3244-00 | 2 | 2 | 06-00745 | $292.95 | |
9 | Gasket | 1 | 1 | 2602 | $11.95 | |
10 | 8" Tire | 1 | -- | 3228 | $115.90 | |
11 | 10" Tire | -- | 1 | 06-08100 | $132.75 | |
12 | 8" Tube | 1 | -- | 3223 | $60.75 |
The Model 2600 8" pneumatic tire and wheel assembly is used on the 3200, 3250, 3400 and 3425 Series tailwheel assemblies. The Model 3245-1 10" pneumatic tire and wheel assembly is used on the 3425 & 3450 Series tailwheel assemblies. Total Wt. 3 lbs. 13 oz. |
