- Photo may represent series and not specific product
- SHARE

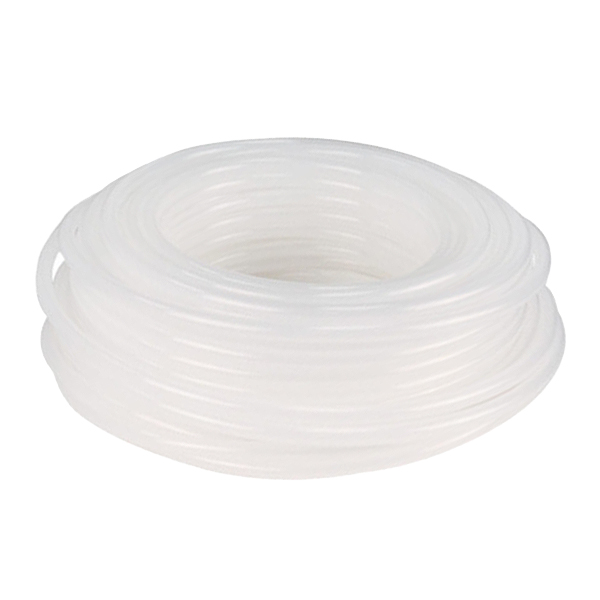

Poly Tube For Resin Infsn 1/2
MFR Model# 88P-N
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Part Number | Tube OD | Wall | Bend Radius | PSI at 75F | PSI at 150F |
|---|---|---|---|---|---|
| 88-P | 1/2 | 0.062 | 2.500 | 250 | 60 |
Overview
|
Poly-Flo tubing is a flexible, economical thermoplastic tubing fabricated from high molecular weight polyethylene for improved strength. The base resin has the greatest resistance to environmental stress cracking of all the regular polyethylenes. It meets A.S.T.M. D-1248-60T, Type 1, Class A, Grade 4 and Federal Specification LP- 590, Type 2, Grade 7. Used for instrument or pneumatic lines. Use Nylo-Seal fittings (259-N inserts are required), nylon or polyethylene hose fittings such as 0710-153. Color - natural. Sold by the foot. |
Reviews
Good quality
This made a great conduit to run the wingtip lighting wire through. Ran a piece of this through the leading-edge tube from root to tip and secured with safety wire (no space for tubing clamps, which I would have preferred), then ran the tefzel just before installing the wing fabric. If the wire ever needs to be replaced or upgraded, the wing wont need to be disassembled, and the wire is very well protected from chafe. And as always, Aircraft Spruce East folks got my order out the door well-packaged, and quickly. It is such a pleasure to have you to lean on as this plane comes together. Thanks, ACS!
All went well. We are a large department. We have a manager in the stockroom that let us know when packages arrive for us. When the package arrived, it did not contain my name, in the address, so it sat in the stockroom until I went looking for it.
Just as ordered and arrived very quickly. would purchase from again.
I prefer this to nylaflow tubing for pitot & static lines. Nylaflow is so rigid it is difficult to work with.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: 5 year shelf life.
Yes, with NyloSeal fittings this tubing can be used for vacuum lines.
No, this tubing is not FAA Approved.
The ID of 44-P is 0.21 inches.
0.313"
The OD is .375, the ID is .313 and the wall would be .062.
Approx .010 or 2 ounces.
259-P06 would work.
-40F to 150F
