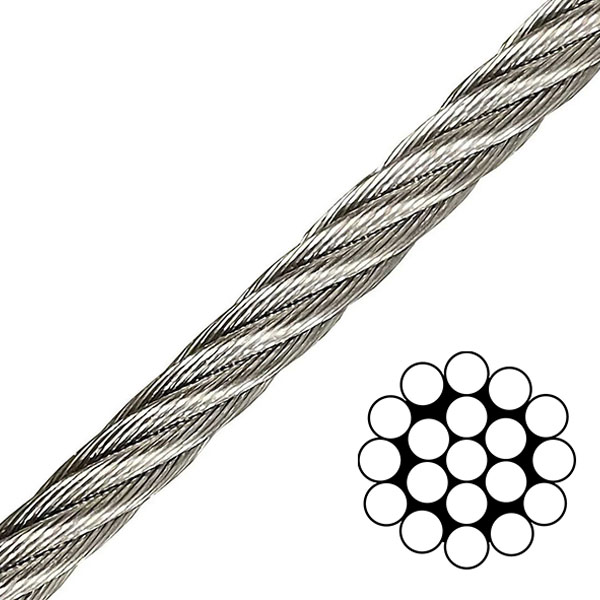

Control Cable 5/32 1X19 Ss
MFR Model# SF15619
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
|
Cable Dia. (in.) | Constr- uction | Strength Galv. | PN Galv. | Buy Galvanized Per Ft. | Strength SS | PN SS |
|---|---|---|---|---|---|---|
| 5/32 | 1X19 | 3300 | 05-04600 | -- | 3300 | 05-04500 |
Overview
|
The major difference between aircraft and commercial cable is the lubrication applied to aircraft cable, which provides substantially better fatigue life than non-lubricated commercial cable. Aircraft cable requires extensive extra testing, documentation and certification to meet military specifications. We obtain our aircraft cable from domestic sources and the cable is certified to MIL-DTL-83420 and QPL Certified. Unit of measure is feet. 7 X 7 Flexible Control Cable Has seven strands of seven wires each. Used for control purposes where extreme flexibility is not required but where abrasion is a factor. 7 X 19 Flexible Control Cable Has seven strands of 19 wires each. Its greater metallic area makes it stronger than 7 X 7 cable. Because of its fine wires the best service is obtained where abrasion is not too severe. These same wires, however, make it flexible to meet severe bending. 1 X 19 Non-Flexible Cable Is one strand of 19 wires. It has more metallic area than 7 x 7 or 7 x 19 constructions which makes it the strongest but also the least flexible. 1 x 19 is generally used for bracing purposes, drag and anti-drag wires. It is often used with swage type terminals. |
Documents
- Tech Data Sheet (PDF)
Reviews
A reasonably priced alternative to Bruntons.
Verified Purchase
Control Cable 5/32 1X19 Ss
Quality cable that works for my needs.
fast delivery . good service.
Excellent service as always
exactly what I ordered.
excellent product, great service.
Just as I expected. good quality
Good cable
Just what I needed.
The cable came as ordered, fast shipping, no surprises. Thank you
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This control cable is priced and sold per foot.
Yes, SS stands for stainless steel and Galv stands for Galvanized. The strength units are lbs.
The regular cable will stretch some when tension is applied, but this cable has been pre-stretched for applications that require a closer tolerance, and the regular cable will not work.
These part numbers are priced and sold per foot, not as a roll.
Yes, it is made of corrosion resistant steel per the specification, but it is magnetic.
It can vary from 500 to 1000 feet.
05-03700, 05-04700, & 05-04900 are type 1, but do not have any cover, or jacket.
We do not send sample material, however there is no minimum order so you can place an order for a very small amount to test with.
We sell it by the foot. We do not make them to order, if you need a custom long length (ie over 500 feet), we recommend contacting our sales department for special order quote.
No this is just raw cable.
