- Photo may represent series and not specific product
- SHARE

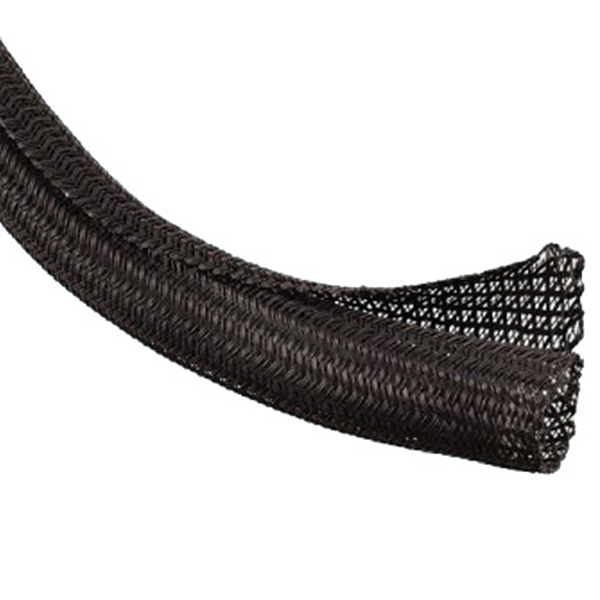

Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100
MFR Model# PFA-PFW-4-BT-100
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
| Description | Nominal (Inch) | Feet (Per Roll) | PN |
|---|---|---|---|
| Braided Expandable Wrap - Bulk | 3/4 | 100 | 05-12895 |
Overview
|
Protect-Fast™ AERO Braided PFA-PFW Sleeving is an efficient ‘slip-over’ solution allowing for easy installation of wires or bundles of cables’ entire run . Flame spread is a vital safety consideration in applications such as home built aircraft wiring and or retrofitting new avionics. Self-extinguishing Protect-Fast PFA-PFW material is FAR25 approved, fully complies with UL standard VW-1. The addition of an organic flame inhibitor to our triaxially braided PFW split sleeving provides the perfect solution to a wide range of cable management needs.
Protect-Fast is a tough, lightweight method used to contain and protect cable assemblies, hoses and wire harnesses from abrasion and cutting. Solvent resistant with a temperature rating from -75ºC to 125ºC (-103ºF to 257ºF). Provides 150% Expansion Sleeve with 25% Overlap Wrap. |
Reviews
as-expected
Verified Purchase
Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100
WOW
Verified Purchase
Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100
Great product. Natural curl in the wrap makes for easy installation and nice custom look.
Verified Purchase
Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100
Good wire bundle protection
Verified Purchase
Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100
This product is fairly easy to use and holds securely. It protects and gives a professional appearance to wiring.
Bought 15 of 1/4 and 3/8 (I think). I had some wire runs that I couldnt protect with grommets or wire ties and the like. I cut off 2 or 3 inch pieces and wrapped the wires. The material is easy to apply and it snaps back tight around the wires. Slides easily from where you can install it to where you want it. Then I wire tie it on each end just tight enough to keep it from sliding out of position. Worked great anywhere I had cables, wires or static pitot touching each other. I was expecting something more like snakeskin but was pleasantly surprised by this cloth wrap. It it plenty tough to stand up to wear. They recommend a hot knife to cut it, but not my choice. A utility knife will do the job,but I prefer some cheap hardware store wire cutting dykes. Then burn the end for q second with a lighter. Simple as can be.
Great product to protect wring after its installed. like spiral wrap but better protection and looks professional. Does expand a bit so the smaller sizes do a pretty large bundle.
Did a wiring harness with this stuff, and the expandable wrap slit tubing actually looks and performs better than the un-slit wrap. Highly recommend and convenience of buying by the foot is great
Re-usable and removable because it is split along its length. Quality manufacturing makes it retain its ability to re-close perfectly after inserting wires. It is made as a coil such as rolling up a sheet of paper. Open the coil, apply around wires, let it close. A minor issue is that it is so well made that it can sometimes be difficult to fully open the coil, especially on the smallest sizes. Not an issue that would stop me from buying and using it however. Fold the cut end in and lace or ty-wrap to keep it shut. Most of the rest of the length requires no lacing, it stays shut on its own. Good stuff.
This braid works very well and is easy to install if you use the installation tool. Using the tool I was able to install multiple wires in a 15 foot run in less than a minute. It also holds very firmly in adel cushion clamps and does not slide.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The preferred method is with a hot knife.
It would depend on how close it would be installed to hot components like exhaust. It is rated from -103:F to 257:F
This would be the ID.
