Photo may represent series and not specific product

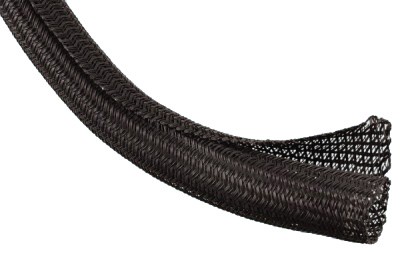

Protect-Fast Braided Expandable Wrap By The Foot

21 Reviews 3 Answered Questions

From $1.29 to $12.70

Description	Nominal (Inch)	Feet (Per Roll)	PN	Price Per Ft	Buy
Braided Expandable Wrap - Bulk	1/8	400	05-12892	$1.29	Quantity
Braided Expandable Wrap - Bulk	1/4	200	05-12893	$2.04	Quantity
Braided Expandable Wrap - Bulk	1/2	150	05-12894	$2.80	Quantity
Braided Expandable Wrap - Bulk	3/4	100	05-12895	$3.55	Quantity
Braided Expandable Wrap - Bulk	1	100	05-12896	$4.50	Quantity
Braided Expandable Wrap - Bulk	1-1/4	75	05-15257	$7.50	Quantity
Braided Expandable Wrap - Bulk	1-1/2	75	05-12898	$8.70	Quantity
Braided Expandable Wrap - Bulk	2	50	05-12899	$12.70	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

JUMP TO
Overview
Accessories
Reviews
Q&A
View in Catalog

Overview

Protect-Fast™ AERO Braided PFA-PFW Sleeving is an efficient ‘slip-over’ solution allowing for easy installation of wires or bundles of cables’ entire run . Flame spread is a vital safety consideration in applications such as home built aircraft wiring and or retrofitting new avionics. Self-extinguishing Protect-Fast PFA-PFW material is FAR25 approved, fully complies with UL standard VW-1. The addition of an organic flame inhibitor to our triaxially braided PFW split sleeving provides the perfect solution to a wide range of cable management needs.

Protect-Fast is a tough, lightweight method used to contain and protect cable assemblies, hoses and wire harnesses from abrasion and cutting. Solvent resistant with a temperature rating from -75ºC to 125ºC (-103ºF to 257ºF).

Provides 150% Expansion Sleeve with 25% Overlap Wrap.

Accessories
Frequently Purchased With
Customers Also Viewed
Related Items

Reviews

Submit a Review

as-expected

Ali S

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100

October 18, 2024

as-expected.

Ali S

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-5-Bt-100

October 18, 2024

Excellent product

Washington S

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-7-Bt-75

October 16, 2024

This stuff is great. Goes on fast, stays in place, and is very versatile.

Ali S

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

October 14, 2024

Excellent product. Easy to install.

Ricky L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-1-Bt

June 24, 2024

WOW very good

Daniel L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

January 2, 2024

WOW

Daniel L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100

January 2, 2024

Great product. Natural curl in the wrap makes for easy installation and nice custom look.

John G

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100

July 20, 2022

Edward L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

July 7, 2022

Edward L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

July 7, 2022

Good wire bundle protection

Edward L

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-4-Bt-100

July 6, 2022

Very convenient: no need to engage it BEFORE connecting cables. You can roll it on existing wires, connected at both ends

Thierry H

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

September 12, 2021

Very convenient: no need to engage it BEFORE connecting cables. You can roll it on existing wires, connected at both ends

Thierry H

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-5-Bt-100

September 12, 2021

Great way to protect wiring

Lyle H

Verified Purchase

Protect-Fast Expandable Wrap PFA-PFW-3-Bt-0150

June 16, 2021

This product is fairly easy to use and holds securely. It protects and gives a professional appearance to wiring.

February 11, 2021

Bought 15 of 1/4 and 3/8 (I think). I had some wire runs that I couldnt protect with grommets or wire ties and the like. I cut off 2 or 3 inch pieces and wrapped the wires. The material is easy to apply and it snaps back tight around the wires. Slides easily from where you can install it to where you want it. Then I wire tie it on each end just tight enough to keep it from sliding out of position. Worked great anywhere I had cables, wires or static pitot touching each other. I was expecting something more like snakeskin but was pleasantly surprised by this cloth wrap. It it plenty tough to stand up to wear. They recommend a hot knife to cut it, but not my choice. A utility knife will do the job,but I prefer some cheap hardware store wire cutting dykes. Then burn the end for q second with a lighter. Simple as can be.

Andy

February 20, 2020

Great product to protect wring after its installed. like spiral wrap but better protection and looks professional. Does expand a bit so the smaller sizes do a pretty large bundle.

Goodfriend A

October 4, 2019

Did a wiring harness with this stuff, and the expandable wrap slit tubing actually looks and performs better than the un-slit wrap. Highly recommend and convenience of buying by the foot is great

Phil D

February 14, 2019

Re-usable and removable because it is split along its length. Quality manufacturing makes it retain its ability to re-close perfectly after inserting wires. It is made as a coil such as rolling up a sheet of paper. Open the coil, apply around wires, let it close. A minor issue is that it is so well made that it can sometimes be difficult to fully open the coil, especially on the smallest sizes. Not an issue that would stop me from buying and using it however. Fold the cut end in and lace or ty-wrap to keep it shut. Most of the rest of the length requires no lacing, it stays shut on its own. Good stuff.

Jim F

August 16, 2018

This braid works very well and is easy to install if you use the installation tool. Using the tool I was able to install multiple wires in a 15 foot run in less than a minute. It also holds very firmly in adel cushion clamps and does not slide.

Scott W

July 1, 2017

Wraps around wire bundles nicely, and was able to maneuver around Adel clamps with a continously piece. Cleans up cockpit nicely and affordable.

Mike A

March 29, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the recommended method of cutting the wrap?

The preferred method is with a hot knife.

Q: Is this Protect-Fast suitable for use in the engine compartment?

It would depend on how close it would be installed to hot components like exhaust. It is rated from -103:F to 257:F

Q: Is the nominal diameter the ID or OD of the wrap prior to inserting wires?

This would be the ID.
