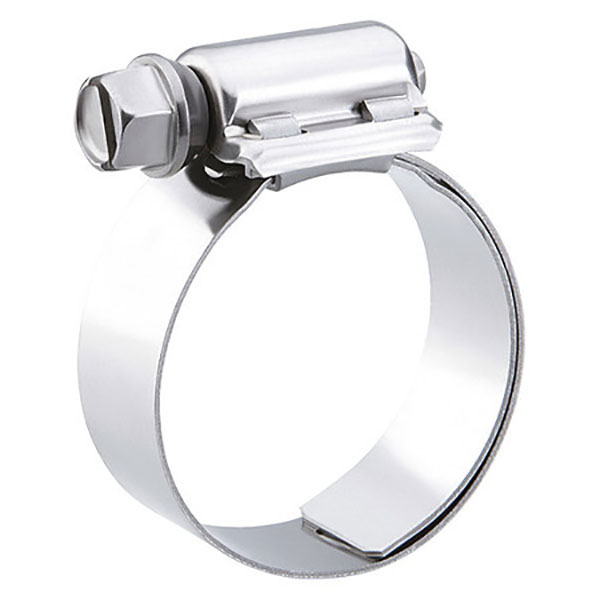

Breeze Clamp 9406H

$2.50/Piece
Part# 05-14930
MFR Model# 9406H
SAE SizeDescriptionMinMaxPart Number
6Breeze Clamp 9406H7/16"25/32"05-14930

Overview

An integral extension of the band as an inner liner protects soft-surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots. Liner clamps afford maximum protection to soft hoses while providing a true concentric seal.

Standard 1/2” (12.7mm) band
5/16” (7.9mm) slotted hex head screw

Per SAE standard J1508 Type “F”

Reviews

These screw hose clamps are designed a bit differently than the usual in that when a correct size is use, the hose rubber is separated from the screw by smooth flat interior perimeter metal. As such, the clamp does not cut into the hose plus looks more airplane than the commonly available box store hose clamps.

Bruce B Verified Purchase

Breeze Clamp 9406H

February 15, 2023

Danilo Verified Purchase

Breeze Clamp 9406H

December 27, 2022

These clamps were perfect for attaching high pressure hoses to quick connect fittings for agricultural spot sprayer.

David C Verified Purchase

Breeze Clamp 9406H

December 13, 2022

I like the clamps so far. The smallest one I used on oil return lines and they are the hardest to close down, and one of them jammed and couldnt be used again

Mike E Verified Purchase

Breeze Clamp 9406H

June 5, 2022

Never used this kind of clamp before but needed it for silicon hose, I dont know if Ill ever use traditional worm drive clamps again. Their simply awesome.

James T Verified Purchase

Breeze Clamp 9406H

February 1, 2022

High quality clamps

Fabio F Verified Purchase

Breeze Clamp 9406H

November 30, 2021

I got these for some silicone tubing on my aquariums and they work great . This company had the best price and shipping was fast . Highly recommend .

Kenneth L
March 18, 2021

Good quality clamp

Jim L
March 17, 2021

Ordered different sizes clamps, made of stainless steel, great clamps not only for silicone hoses but for all hoses to minimize cutting into the hose..

Joepro
March 4, 2021

Quality silicone hose clamps

Joepro
March 4, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Id like to know the width of the 3 INCH clamp please, part # 05-14937?

Standard 1/2 (12.7mm) band

Q: Are these made of stainless steel throughout the entire clamp, including the screw?

Yes these are full stainless.

Q: What grade stainless are these clamps? I need something for salt water is why I ask. Im also using them on 3/8 fuel line, will your smallest #6 clamp work for that size hose? Thank you in advance!

These are a combination of 300 and 410 series stainless. The minimum on this clamp is 7/16. You would probably want a 6504 clamp for your fuel lines.

Q: What is the difference in the part numbers that have the “H” and the ones that do not?

The "H" clamps have a liner to protect the hose.

Q: You state they are full stainless including the screw. I tested with a magnet and the band is non magnetic but there was a strong attraction between the magnet and screw, indicating the screw is non stainless. Has there been a design change or possibly incorrect screws used on these clamps I purchased?

The screw is a 410 grade stainless which will have a magnetic draw, per the manufacturer.
