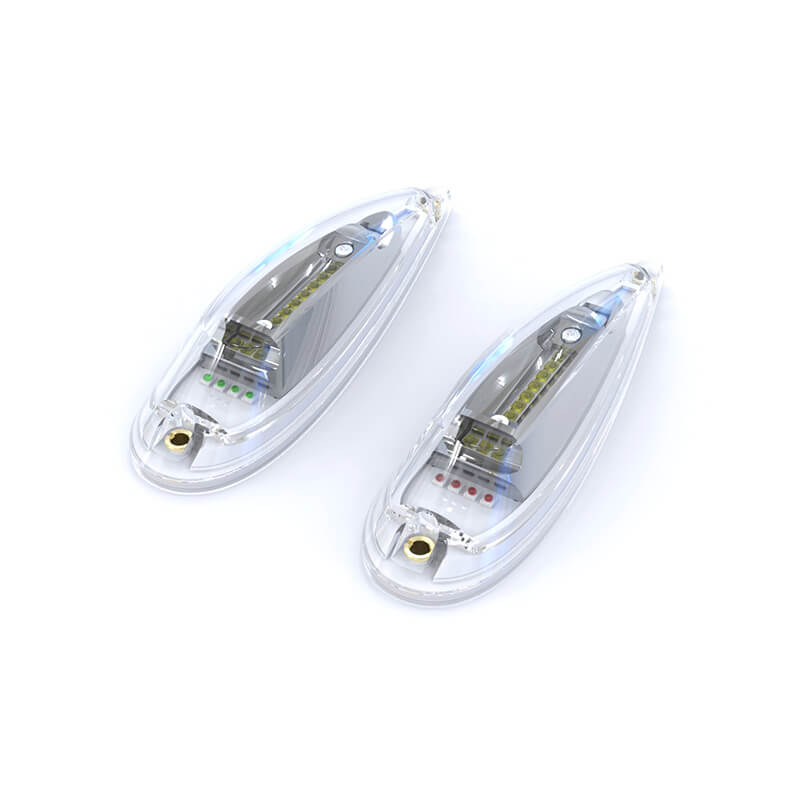

Aveo Powerburst Daylite Grn-Red-Whte With White Base

$758.00/Pair
Quantity
Add to Wishlist
Part# 05-26588
MFR Model# AVE-WPSTG/R-2WD

Overview

For Experimental Use Only. Not approved for installation on certified aircraft. This is not a TSO certified light.

At only 26 millimeters in height (1.024 inch), Aveo's DayLite Series PowerburstNG wing lights still pack a maximum of brightness into a value light that does not sacrifice anything in performance.

The exclusive and highly advanced optics and chrome reflector system, unmatched power and LED management circuitry, and Aveo's famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

Features

  • 3-in-1 Nav/Position/Strobe
  • Extremely lightweight
  • Unmatched circuit technology
  • Waterproof
  • Vibration-proof
  • Shock-proof
  • Dust-proof
  • Limited 3yr Warranty - Product must be registered within 30 days of purchase Here

Specifications

  • Dimensions (mm): 115 mm x 33 mm x 26 mm
  • Dimensions (inches): 4.539“ x 1.307“ x 1.024“
  • Weight: 64 g / 2.25 oz
  • Operating Voltage Range: 9 – 18 V DC
  • Input Current – Position / Nav - green (@14V): 0.28 A
  • Input Current – Position / Nav - red (@14V): 0.23 A
  • Input Current – Strobe (@14V): 2 A peak
  • Output Power - Position / Nav - green: 3.3 W
  • Output Power - Position / Nav - red: 2.5 W
  • Output Power - Strobe: 24 W peak
  • Repetition Rate of Strobe: 50 cycles per minute
  • Ambient Temperature:
  • from -40°C to +85°C
  • from -40°F to +185°F
  • Overheat Protection: Yes
  • Recommended size of mounting screw: M3 / DIN 7984
  • Torque requirement for screw M3 / DIN 7984: 0.5 Nm
  • Reverse Polarity Protection: Yes
  • Waterproof, Dust-proof, Vibration-proof: Yes
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

super qualite

Stock A Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With White Base

April 3, 2024

Have not installed them yet but I did test them . I was concerned about the brightness because they are so small but they are very bright. Much more so than the incandescent lights.

Tom A Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With White Base

July 3, 2022

Excellent wing tip lights for brightness with strobe & nav & position. Working well on my Arion Lightning, following replacement of old system. Would recommend. Box did not include mounting screws or threaded base plate, but used long 6/32 screws & tapped anckor plate ok.

David
November 24, 2021

The Aveo Powerburst is easy to install and significantly brighter and lighter than my old Whelen strobe system. The only downside for my application was the hole pattern on the new unit did not match my old strobe installation. That was solved by fabricating a tear shaped mounting plate to go between the Aveo and old wing tip surface. This allowed me to match the old hole pattern and add nut plates to secure the new lights, thus avoiding fiberglass and sanding a new mounting surface. I suspect the average install will not need this step and mount more conveniently.

F. M
December 8, 2020

Aveo=great customer service

Donald D
September 24, 2020

Very easy installation. Had to make a mounting plate for my Cozy. Much brighter navigation lights than old Whelan system.

Patrick
August 10, 2020

Nice unit, very bright strobe!

David L
July 6, 2020

Not installed yet but are very bright. They’re going work great on my RANS S-19

John M
August 9, 2019

Put them on an RV7. Theyre Gucci, would recommend

Kevin
May 13, 2018

Great lights for the price. I had one strobe fail after four years but AVEO replaced it for free. Mine haven't yellowed as someone mentioned but the plane is hangered.

Murray M
September 5, 2015

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The Aveo Powerburst is listed for 14V applications. Will this work in a 12V system? Regarding 05-04877

Yes, 14V sets can be used in 12V systems as they are essentially interchangable.

Q: What are the dimensions of 05-04877? Thank you.

Please review the Dimensional Drawing found in the "Documents" tab of this web page.

Q: This site on one page says it is water proof and vibration proof. On another page it says water and vibration resistant. Which is it water / vibration proof or water / vibration resistant?

We have updated our web page to be consistent with the manufacturer's. All listings of this information now say "waterproof and vibration proof" which is consistent with manufacturer's listing.

Q: If the sync wire is omitted from the installation, does the Aveo Powerburst light system still function normally, except, that is, with the left and right strobes out of sync?

The blue wire is an optional sync feature. The lights are closely matched at the factory but they will, over cycling, end up out of sync if the blue wires are not connected between the lights. If you don't care about syncing then there is no need to connect the blue wires.

Q: I have a 12V system but when the engine is running my gage is showing 14.6V. Is that within the acceptable range?

Yes, this is within the operating range for this light set.

Q: Regarding Part # 05-04877 (AVEO POWERBURST GREEN-RED-WHITE): Do the position lights (Red/Green) flash or just stay constant on?

The tech data sheet only shows the strobe (white) flashing. The red / green lights do not flash.

Q: What is the repetition rate of this strobe? How many flashes per second?

Repetition Rate of Strobe: 50 cycles per minute. This would equal 0.8333 flashes per second.

Q: Aveo shows this as the PowerBurst Plus. Are you selling the newer model or the older (non-Plus) model?

The Aveo Powerburst(05-04877) is the DayLite model.

Q: How many candela is the nav light and how many candela is the strobe?

Aveo does not provide candela information. They state that the candela depends on lab resting conditions.

Q: Can the strobes be tuned off separately from the red and green nav lights? So they are not constantly on when the nav lights are on.

The nav lights have a separate power supply than the strobe. You can wire two switches to operate independently.
