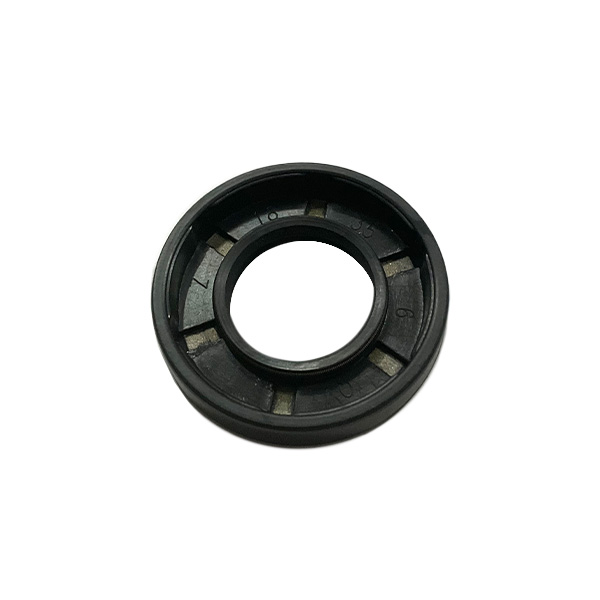

ABI 1863 Bearing Race Seal
MFR Model# ABI-1863
| Item | ABI PN | Description | PN |
|---|---|---|---|
| 25 | ABI-1863 | Grease Retainer | 06-00746 |
Overview
|
The Alaskan Bushwheel Tailwheel Assembly is an FAA-PMA (PMA # PQ1557NM, Supplement 9) Replacement part for the Scott 3200 assembly and parts contained therein, includes Heavy Duty Steering Arm. One Year Warranty.
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’ **=NOT INCLUDED IN ABI-3400B ***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY ****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER *****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00 ******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY. |
Parts Diagram
NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.
Reference Chart
Reviews
Made in Chin....... ugh
Verified Purchase
ABI 1863 Bearing Race Seal
great service from Aircraft Spruce and UPS as usual. Thanks heaps
looks good
Easy to identify and order the replacement part required (bracket assembly)
Quality tire good price and Aircraft Spruce is a great company to work with.
I ordered this part on Sunday evening, and I received it at my office the following Thursday afternoon. I live in Sydney Australia! Great service.
Well made cast and machined aluminum bracket, quality black paint, includes main shaft with zerk. Fit onto 50+ year old Scott 3200 fork assembly perfectly. Needed to transfer bolt sleeve bushing from old bracket. Easy to press in. Old leaf spring bracket required some reshaping and filing to fit - because of damage from old broken bracket.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The ABI 3200 tailwheel weighs approximately 9 lbs.
No, these are two different units. 06-00724 is Scott Equiv to 3216-00, which has one mounting hole, and used on 3200, 3224A, & 3200B assemblies. 06-01291 is Scott Equiv to 800613, which has two mounting holes, and used on 3200-3 & 3200-3B series assy's.
3400 weighs 11lbs and 3400B weighs 13lbs.
It is listed towards the bottom of the ordering chart. The part number for the tire is 05-15212 and the part number for the tube is 05-15211. The size is 280 X 2.50 X 4.
06-01151 is the tailwheel head with the head bolt, grease zerk, and bearing race installed.
This is a complete tailwheel assembly 10", this replaces the scot 3400. The tailwheel does not include springs.
