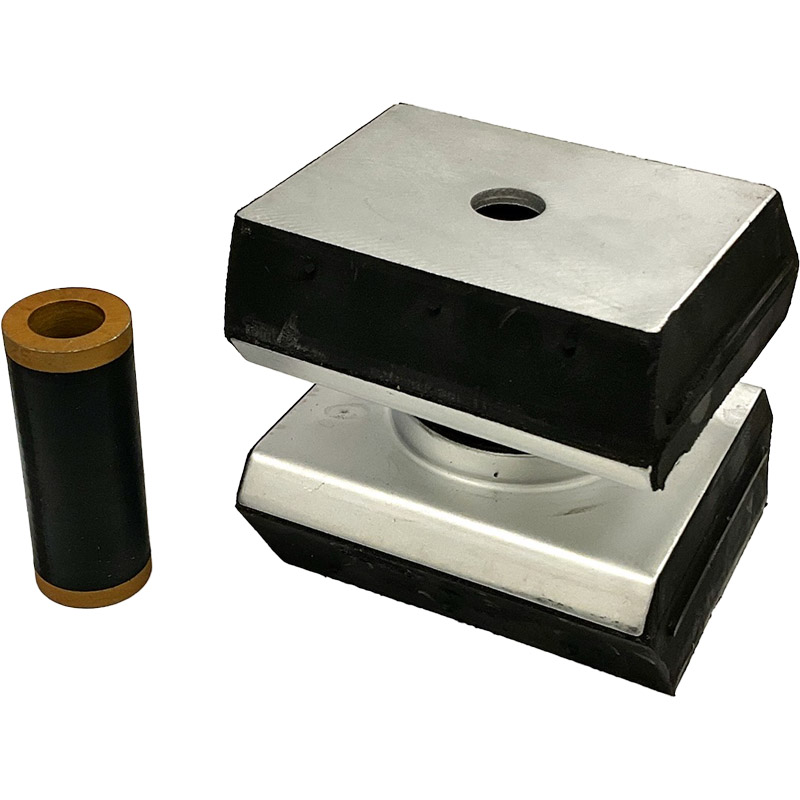

Lord Engine Mount J-10520-1
MFR Model# J-10520-1
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
| Description | Engine Mount No. | PN |
|---|---|---|
| Lord Elastomeric Engine Mount | J-10520-1 | 07-01124 |
Overview
|
Note: Please review application guide below to confirm correct part number for your aircraft. Lord Engine Mount Application Guide (PDF) These compression type couplings consist of bonded rubber joints pressed into the sockets of metal hubs. These dynafocal engine suspensions provide proper flexible support to isolate engine vibrations and reduce noise transmission to airframe structure in all aircraft applications. Careful design assures maximum strength to hold the engine under ultimate load and emergency conditions. Suspensions also distribute loads in most desirable patterns, control engine motions, accommodate thermal expansion and manufacturers’ tolerances. |
Documents
- Lord Application Guide (PDF)
Reviews
Verified Purchase
Lord Engine Mount J-10520-1
Verified Purchase
Lord Engine Mount J-10520-1
WOW. Ordered and delivered the next day. Fit perfectly. Great experience with AirCraft Spruce
Thanks , fresh cure and fast delivery
Perfect fit on my Bonanza 1963 P35 with the IO 470 N
The usual Lord quality! Perfect fit!
Excellent fit and good quality
These Lord mounts are fine, BUT BE AWARE, even though the picture shows a set of 2, the listed price is for just 1. You have to order 8 each to get enough to do the job.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Engine mounts are sold individually. If you require 4 units, you will need to order 4. Each mount has two halfs and a spacer if required.
The approximate dimensions are: 2-5/8" L x 2-5/8" W. 7/8" H. 1-1/4" diameter of center hole.
Yes. We do carry the hardware you would need for these Lord Mounts. However, the specific part numbers you would need would depend on your aircraft application.
P/N# 11-04206 would just be one engine mount. So, yes would need to purchase a quantity of four.
It does not, it is only one half of the mount.
You would need qty 8 for your engine. These do not have a bushing sleeve included.
Each package contains the following information: Part #, PO #, FAA/PMA, Cure Date, Batch #. Lord C of Cs can be furnished upon request at time of order.
The tabbed washer is not included with these isolators.
