Heat Barrier 12X12 Adhes Bck

$24.50/Each
Part# 08-00630
MFR Model# 13500
DescriptionPart No.
HEAT BARRIER ADHESIVE BACKED - 12" X 12"08-00630

Overview

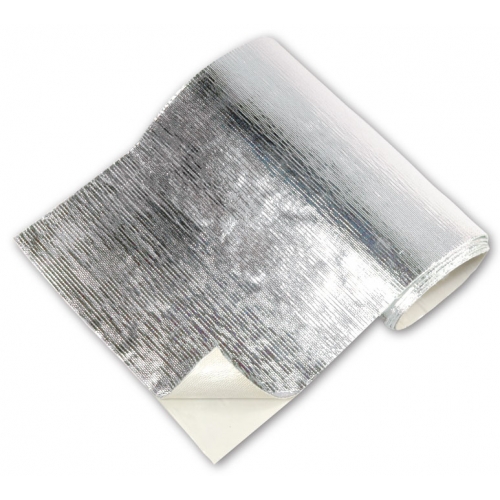

Aluminized Heat Barrier is made up of woven silica with a flexible aluminized finish. The highly reflective surface of the material is capable of withstanding radiant temperatures in excess of 2000°F. The adhesive backed composite construction material can easily be applied to any surface or wrapped around a hose or wire to make a clean professional appearance.

Note: Clean surface before applying. Adhesive is rated up to 300° F. Don't apply to any parts of exhaust system. This product is designed to block radiant heat only!

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Great product and exactly like listed! Very durable! Thank you!

Marino H
May 13, 2021

Excellent for cowling insides

Terrence
September 7, 2019

Very useful

J-c T
August 10, 2018

It works.

Steve M
March 8, 2018

Great stuff. Easy to work with and economical. Only recently installed in lower cowl, so cant rate longevity of product in use. Will adjust rating if insulation doesnt hold up over long time usage.

Skyvine
September 18, 2017

Adheres well in my fiberglass cowling. Was easy to apply. Used it to protect the fiberglass from the direct heat of the cylinders. Now lets see, how well it lasts in the long run.

Mr. T
July 17, 2017

I ride a KTM 1290 SA with a serious problem with heat radiating off of the engine head that is just below the seat. Talking to a custom motorcycle seat builder, he suggested this product and it works great! Im much more comfortable now, which means Im less distracted and likely a safer rider. Great flexible product thats easy to cut, shape and adhere to items that arent flat. Quick delivery, but really overpacked.

Brian
July 17, 2017

Good to work with

Dennis R
June 26, 2017

I used this heat material to protect the inside of a RV-9 cowl. It was easy to apply and I was able to work it around some slight bends. With a few relief cuts it looks great. The material is strong with insulation under the foil. The adhesive seems to be strong.

Robert E
June 24, 2017

Covered Firewall as extra heat barrier and performs well!

Eddie
June 23, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How thick is this aluminized heat barrier? Is this product flexible enough to go around COMPOUND curves such as the inside of the cowling of an RV7?

It is approx. 1/16" thick. It does not stretch, so some cutting may need to be done to go around compound curves. It is pliable around flat surfaces, just will not stretch around surfaces.

Q: What is the weight of the product? ie: 12x12

Approx 0.16 lbs.

Q: Who makes this this aluminized heat barrier?

This product is manufactured by Thermo-Tec.
