- Photo may represent series and not specific product
- SHARE

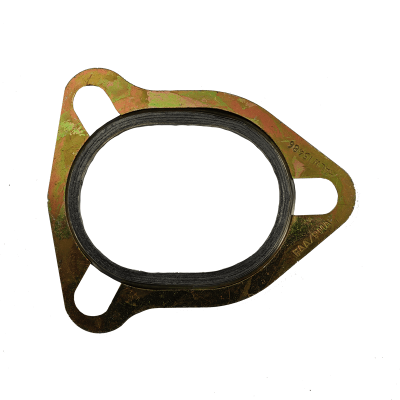

Rapco RalW15486 Exhaust Gasket
MFR Model# RALW15486
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Engine | Rapco PN | Model | Description | Part Number |
|---|---|---|---|---|
| Lycoming | RALW15486 | Spiral | Rapco RalW15486 Exhaust Gasket | 08-05286 |
Overview
|
RAPCO manufactures FAA-PMA approved exhaust gasket replacements for Continental and Lycoming engines. High quality, economical stainless and copper beaded gaskets. Extra thick spiral woundstyle available “Blow Proof”
Download Rapco Exhaust Gaskets Application Chart Download Complete Rapco Catalog PDF |
Reviews
It looks like the ones that came off the motor but I have not used at this time.
excellent
just what needed to provide necessary clearance between intake and clamps on exhaust
Require 4 rapco exhaust Gaskets for the C-90 engine. Pa-11 aircraft. Please provide price and availability so i can order. Thunder Bay, Ont. Canada
Good quality, and fit.
Great gasket works good.
Thought I was saving a little money. They dont fit. Rub on the intake elbows. You have to grind a little off the sides to keep from rubbing on the intake elbows and to secure a tight fit with the exhaust risers. I will not buy them again. FAA-PMA and are different size than the TCM 627429.
Product good but shipping very high, could been sent by US postage for less than $4
Great gaskets, but the fit was not good. Had to remove some of the steel carrier ring to get them to fit.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is used as one per cylinder.
Per Rapco: It is recommended that all exhaust gaskets, flat and spiral wound, are changed each time they are removed. They are designed to crush into place to block high temperature exhaust gases from eroding any uneven mating surfaces. If reused they may not seal properly.
2.25" od, 1.765" id, .05 thick, 2.5" hole center to hole center.
