Whelen 9034004 28V Red Wingtip
MFR Model# 01-0790340-04
Overview
|

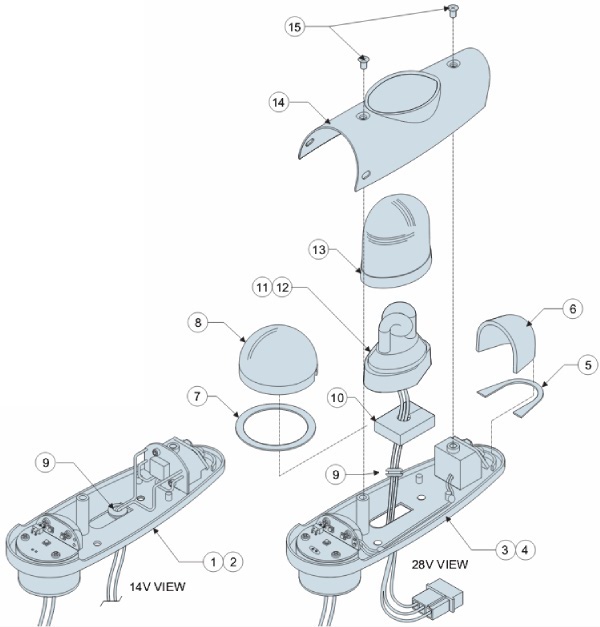

90340 series is an all inclusive wing tip mounted strobe anti-collision/position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail mounted position light. The LED's provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. Single set of flying leads operates both forward & tail nav on 28 VDC version, and one set each of flying leads for the forward & tail nav on the 14 VDC version.
|
Reference Chart
(FAA TSO-C96a / TSO-C30c Types II & III) | ||
(FAA TSO-C96a / TSO-C30c Types I & III) | ||
(FAA TSO-C96a / TSO-C30c Types II & III) | ||
(FAA TSO-C96a / TSO-C30c Types I & III) |
Specifications
- LED Navigation Light Power
Consumption: 0.5 amps @
14 VDC, 0.25 amps @ 28 VDC - Weight: 0.60 lbs. (272gm)
14 VDC, 0.65 lbs. (295gm) 28 VDC - Exposed Height: 2.70” (69mm)
- LED Colors: Aviation Red, Aviation Green & Aviation White 1.1 lbs. (499gm)
- Lens: Clear RFI coated glass: strobe, Clear Polycarbonate: Navigation Lights
Reviews
Easy to install Good quality ,accurate size I used it on Seneca V and it works great soon I change the other ones
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Whelen, the LED bulbs cannot be purchased individually without the assembly.
Yes, part #'s 11-05625, 11-05626, 11-05627, and 11-05628 are position lights which also incorporate the strobe and housing for your wingtip. The difference between these part numbers is color and voltage.
Yes, you will need to purchase two, one for the right and one for the left. They do not come as a set.
Yes, these are FAA TSO-C96A/TSO-C30C Types I & III.
