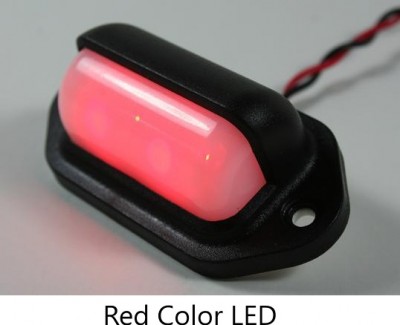

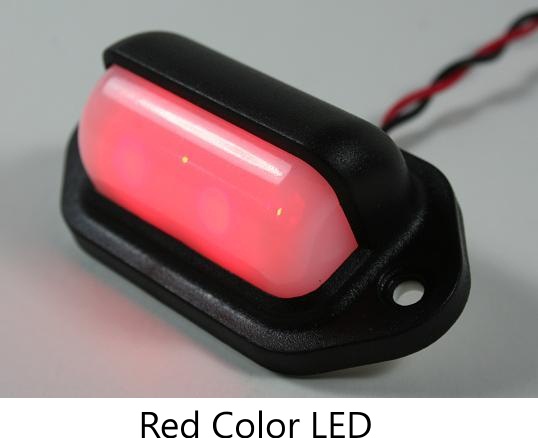

Surface Mount LED 24V Red

$17.75/Each
Part# 11-09259
MFR Model# SM-01R24

Overview

  • Surface mount convenience light
  • 2 Bright LEDs behind a frosted panel
  • Surface mount with hardware
  • Dimensions: 2.5” x 1.25” x 5/8”
  • #6 mounting holes
  • 12 Volt DC or 24 Volt DC, very low power drain (0.1mA)

Applications: foot wells, door panels, side panels, map light, chart lights or anywhere a dimmable, bright LED light is needed.

Reviews

Works Great.Fast delivery.

Tim W
January 12, 2020

Worked just fine. I would have given it 5 stars, but it doesnt seem quite as bright as the old filament bulb light.

Dave
August 13, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will these work in a 28vdc aircraft?

Yes. The 24 volt versions will work in a 28vdc aircraft.

Q: Do the lead wires on surface mount light fixture meet the FAA flammability requirements?

This surface mount light fixture would not meet FAA flammability requirements and is not in anyway FAA approved. This is designed for experimental aircraft only.

Q: Do the LEDs come with this surface mount LED light fixture or do you need to buy them separately? If not, how much are they and what is the part number?

Yes, the LEDs are included with this product.

Q: Are these Surface Mount LED Light Fixtures dimmable?

Yes, these are dimmable.

Q: What is the weight of these SURFACE MOUNT LED LIGHT FIXTURES?

Approx 0.50 lbs.
