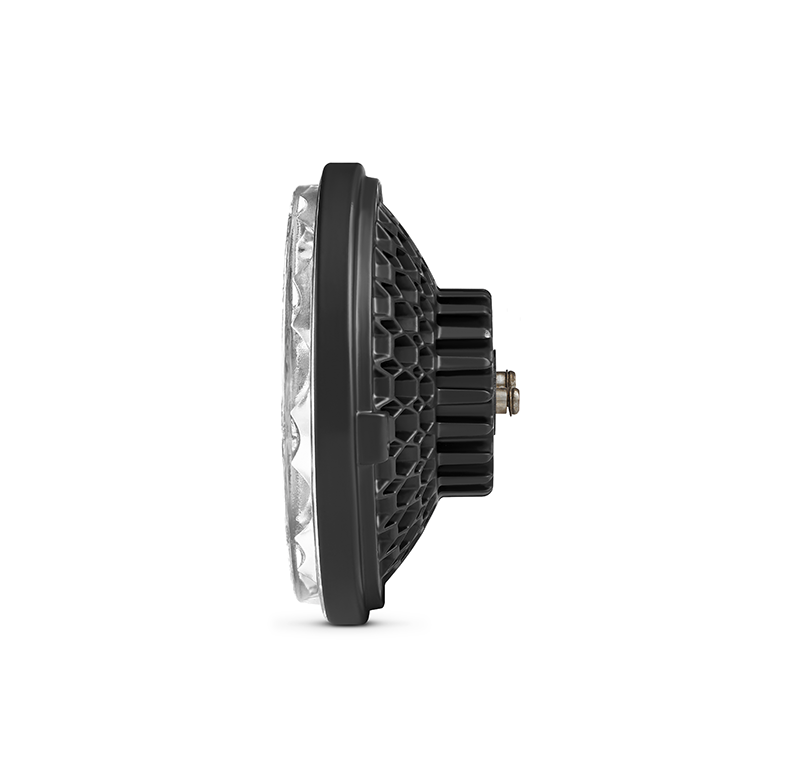

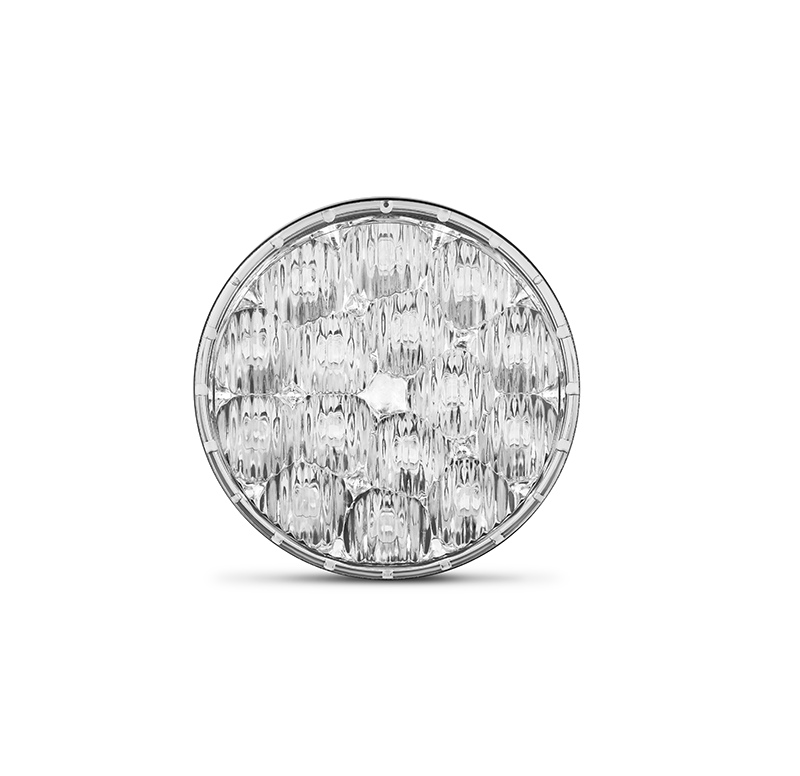

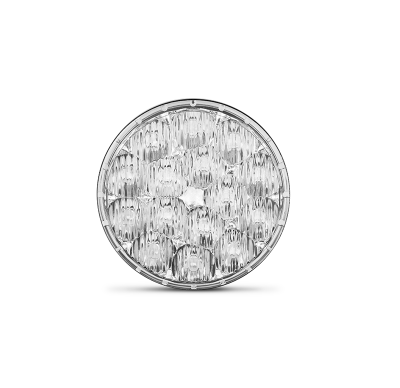

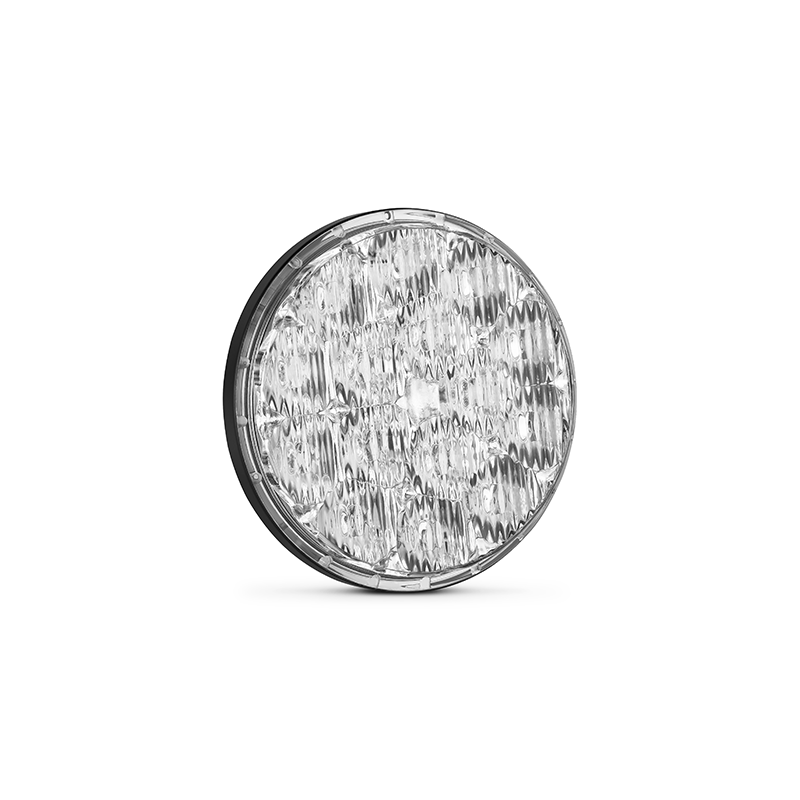

AeroLEDs Sunspot 4587 Taxi Light PAR 36 FAA-PMA - Certified
MFR Model# 01-1030-4587
Overview

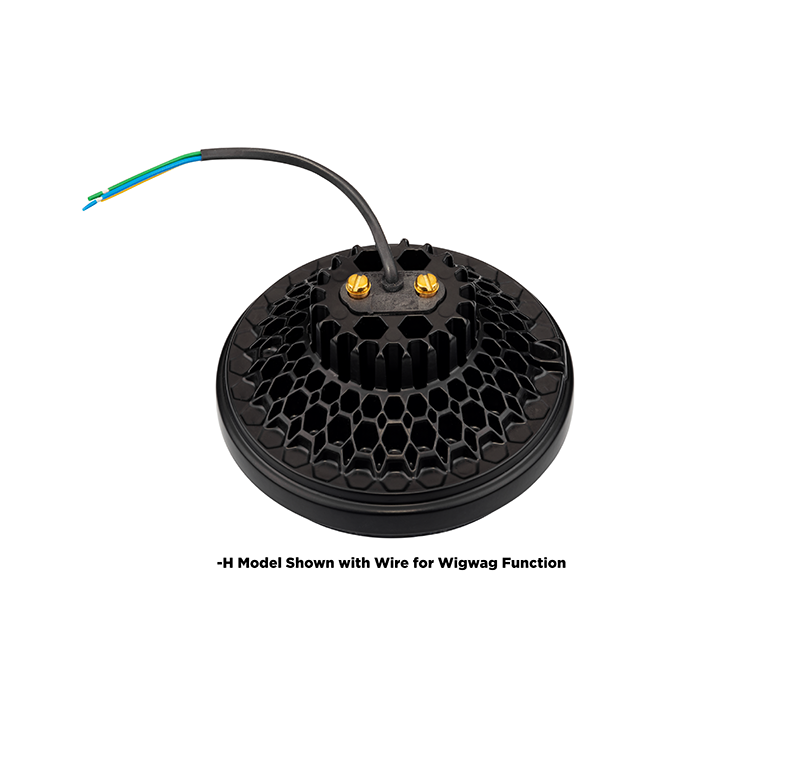

| Highest performance in the industry – This 100 watt LED taxi light boasts an outstanding 11,000 lumens and a specially designed Fresnel lens to provide a broad 20°x40° bright white beam angle. This greatly improves visibility on the ground and recognition in the air from up to 30 miles away. All SunSpot Series LED aircraft lights consume less power, produce more lumens (total light output), and are not affected by vibrations compared to incandescent bulbs. These attributes make the SunSpot ideal for most aircraft. SunSpot outputs a wider beam at a color temperature that illuminates the true color of an object. This provides exceptional color rendering as opposed to “grayed” out images from the orange-red color temperature of an incandescent lamp. All SunSpot 36 Series lights utilize the aircrafts’ existing PAR36 mount and electrical connections for ease of installation. (-H versions require an additional wire*) |
Features
- Power consumption:
- 100 watts max
- Color temperature – aviation white
- Built-in pulse mode (-H models)
- Synchronization (-H models)
- Easy installation
- 30k hr MTBF
- Built-in thermal protection
- Aluminum/black powder coated heat sink
- UV hardcoated polycarbonate lens
Specifications
| SPECIFICATIONS | ||
|---|---|---|
| Certification | FAA-PMA / STC | |
| Voltage | Nominal | 28V AC/DC |
| Minimum | 18V AC/DC | |
| Maximum | 30V AC/DC | |
| Current | 3.6A @ 28VDC | |
| Power | 100W | |
| Lumens | 11,000 | |
| Candela | 65,000 | |
| Beam Profile (@10% peak) | 20° Vertical x 40° Horizontal | |
| Dimensions (L x W x D) | 4.4" x 4.4" x 2.1" | |
| Weight | 11.5oz | |
| Mounting | PAR36 | |
Documents
- PMA Letter (PDF)
- PMA Letter Supplement 2 (PDF)
- PMA Letter Supplement 4 (PDF)
- PMA Letter Supplement 7 (PDF)
- PMA Letter Supplement 11 (PDF)
- PMA Letter Supplement 18 (PDF)
- PMA Letter Supplement 19 (PDF)
- Part 23 STC SA02386AK (PDF)
- Part 27 STC SR02704SE (PDF)
- MDL Part 23- 0003-0001 (PDF)
- MDL ST-20-502-02 (PDF)
Reviews
Outstanding taxi light. Very bright. Spreads the light out from edge to edge of the taxiway. Looks a lot like the headlight pattern you would get from a modern automobile.
Without a doubt, its the brightest taxi light I have ever seen. Its like turning on the sun in front of your airplane. You can see at least thirty yards ahead of you and fifteen yards on each side. The LED lights I replaced did not cover half that area and were not nearly as white or as bright. This light is a direct replacement for the incandescent or other LEDs and is really easy to install. It is well-designed and really does the job. Yes, its a bit expensive, but you get what you pay for.
Verified Purchase
AeroLEDs Sunspot 36-4587 Taxi Light FAA PMA 24V
Good dispersion for a taxi light. Very bright.
Verified Purchase
AeroLEDs Sunspot 36-4587 Taxi Light FAA PMA 24V
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
If the aircraft has a 28v system, the AeroLED Sun Spot 4587 can be used to replace any PAR36 lamp.
