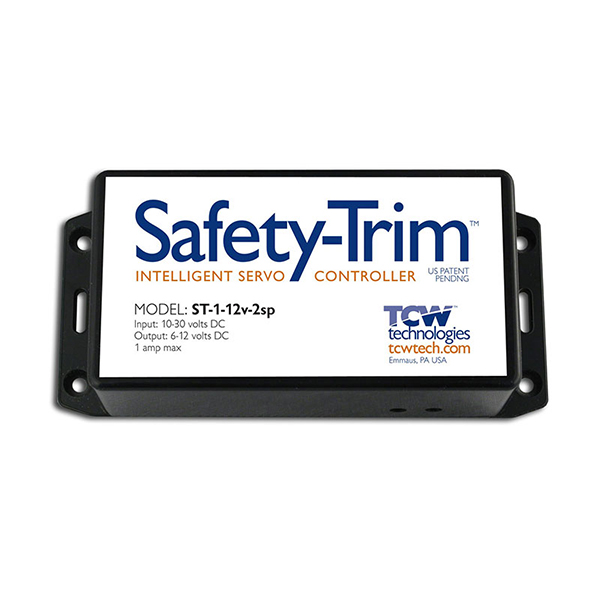

- Photo may represent series and not specific product
- SHARE
TCW Safety Trim Servo Booster - 10 Amp - 12 Volt
$398.00/Each
Part# 11-19271
MFR Model# ST-1-12V-10A-BSTR
MFR Model# ST-1-12V-10A-BSTR
Overview
| Designed for standard electric trim servos, the Safety-Trim Intelligent Servo Controller (Safety-Trim) is an electronic speed control system for experimental aircraft. Safety Trim Servo Booster is designed specifically to receive input commands from compatible autopilot systems, such as the Garmin G3X GSA 28 or a traditional DPDT type rocker switch. Safety Trim Servo Booster operates DC electric servo motors up to 10 amps of rate current. |
Features
- Electronic servo controller with speed control run-away protection
- Time limited operation prevents trim servo run-away conditions
- Servo travel limited to 3 seconds per trim switch actuation
- Reverse function switch allows pilot to recover from a stuck or failed trim switch
- Eliminates many other components, no extra relay decks or speed controllers needed
- Very simple wiring, no extra parts needed for pilot and co-pilot trim switches
- Short circuit proof, reverse polarity protected
- For Experimental aircraft only NOT TSO'd
- Made in USA -- patented
Specifications
| ST-1-12V-10A-BSTR | ST-1-24V-10A-BSTR | |
|---|---|---|
| Input voltage: | 10-15 Vdc | 20-30 Vdc |
| Output voltage: | PWM follows autopilot signals | PWM follows autopilot signals |
| Output current: | 10 amps max, DC motor drive | 10 amps max, DC motor drive |
| Input signal: | Direct autopilot connection | Direct autopilot connection |
