AN No. | MS No. | Mfgrs. PN | Contact | Toggle Circuit Code |
---|---|---|---|---|
AN3027-3 | MS35059-23 | JBT - MS No. | DPDT | 3 |
Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock. Note: * Momentary Contact |
|
| ![]() | ![]() | ![]() |
UP | CENTER | DOWN | |
1 | On | Off | On |
2 | On | None | Off |
3 | On | None | On |
4 | On | Off | On* |
5 | On* | Off | On* |
6 | Off | None | On* |
7 | On | Off | None |
8 | On | Off | None |
9 | None | Off | On* |
10 | On | Off* | None |
11 | On | None | On* |
12 | On* | On | None |
13 | On | On | None |
|

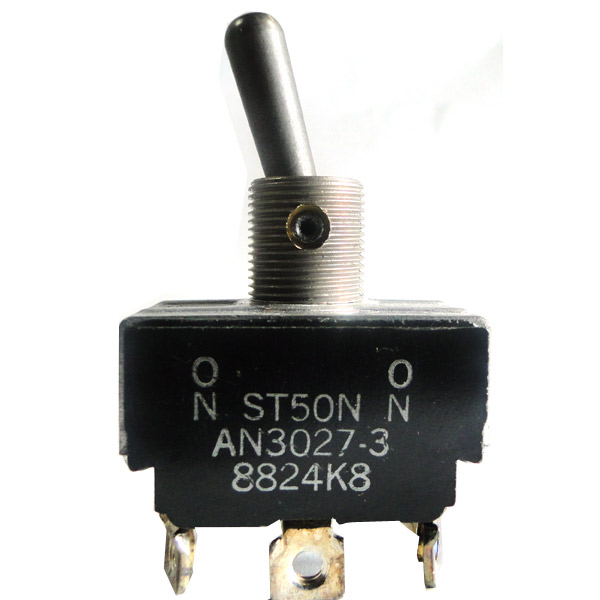

TOGGLE SWITCH AN3027-3
TOGGLE SWITCH AN3027-3
Great product, service, and reliability.
TOGGLE SWITCH AN3027-3
Replaced the nav switch with this an3027-1 dpdt switch on a 1966 Piper cherokee that was blowing the fuse. Worked perfectly and resolved the problem.
Excellent little switch
Excellent. I was amazed how quickly the order processed and arrived in these trying times. Keep up the good work & Happy New Year to all the fine folks at Aircraft Spruce
Good feel to the toggle and proper amp rating.
Good Product.
Good Product.
what part number for a double pull on-none-off Thanks
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a 20 amp switch.
Yes, these are the approximate dimensions: 1-1/8" L x 5/8" W x 5/8" H.
Correct. With "None" in the center position, the switch will toggle only all the way up to all the way down.
Yes, push the lever to either position to activate, and the lever will spring back to center off, if not held in position.
Yes, these switched will work in 14v dc systems.
The hole size for the toggle switches to fit through the panel is 1/2".
The * represents momentary on. Essentially it's on at contact and then once released it is back off. It does not stay on.
The keyway slot is on the down/off position.
Enter 12 in the input box in the "Buy" column in the ordering grid. Then, click the "Add to Cart" orange button below and the items will be instantly added to the shopping cart.
Yes, included are 2 hex nuts, 1 lock ring, and 1 lock washer.
