PN | MS-21150 |
---|---|
REP4S10 | -2 |
MS21150 • SAE-AS6039

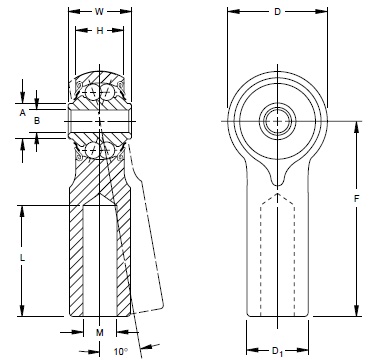

Double row, ball, self-aligning 10° permissible misalignment in either direction These bearings are manufactured with an internal play of .0004 in. (.010mm) max. Inner and outer raceway surface finish = 8 micro in. AA max. Equipped with PTFE seals Exposed surfaces except bore, cap, and seals are cadmium plated Outer shank - 90,000 psi min. tensile strength |
PN | MS-21150 | B Bore | D Outside Dia. | W Width Inner Ring | H Width Outer Ring | A Shoulder Dia. | F Bore Center to end of Shank | Width Shank | Weight | Load Rating (lbs) |
---|---|---|---|---|---|---|---|---|---|---|
REP3S7 | -1 | .19 | .781 | .437 | .328 | .281 | 1.375 | .430 | .07 | 1000 |
REP4S10 | -2 | .25 | .938 | .593 | .438 | .345 | 1.875 | .625 | .16 | 1720 |
