Aithre Altus Meso Portable Oxygen Tank Pressure Monitor - With iOS App - Black
$374.00/Each
Part# 11-18407
MFR Model# AAMOTSM02IV
MFR Model# AAMOTSM02IV
Overview
|

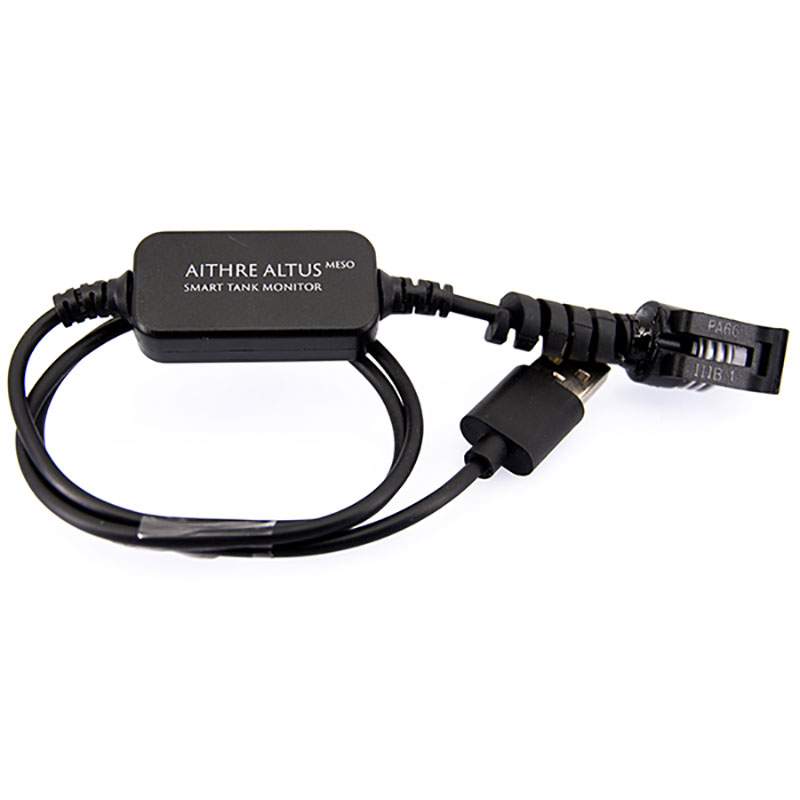

The Altus Meso is the second generation Altus smart tank monitor from Aithre with all the same innovative functionality now packaged in a miniature form factor. Altus Meso wirelessly pairs to your iOS device and Apple Watch to display pressure, flow rate, and time remaining, including oxygen trend graphing and much more, now using only USB power (optional 5V hardwired experimental aircraft installed version available upon request). This small device makes your portable oxygen tank more usable and accessible without the expense and hassle of a traditional built-in system.
WARNING: Do not use any unapproved fittings on your oxygen tank as the fittings Aithre provides are special high-pressure fittings designed to withstand 5000 plus PSI. Aithre fittings are sourced from Aerox and Mountain High and are designed for oxygen tank use. Hardware store fittings are only rated to 100-300 PSI, which is not sufficient for oxygen tanks. Amazon is flooded with cheap CHINA fittings that are of unknown quality and never used by Aithre. Risk of injury or death if you use non Aithre fittings. |
Features

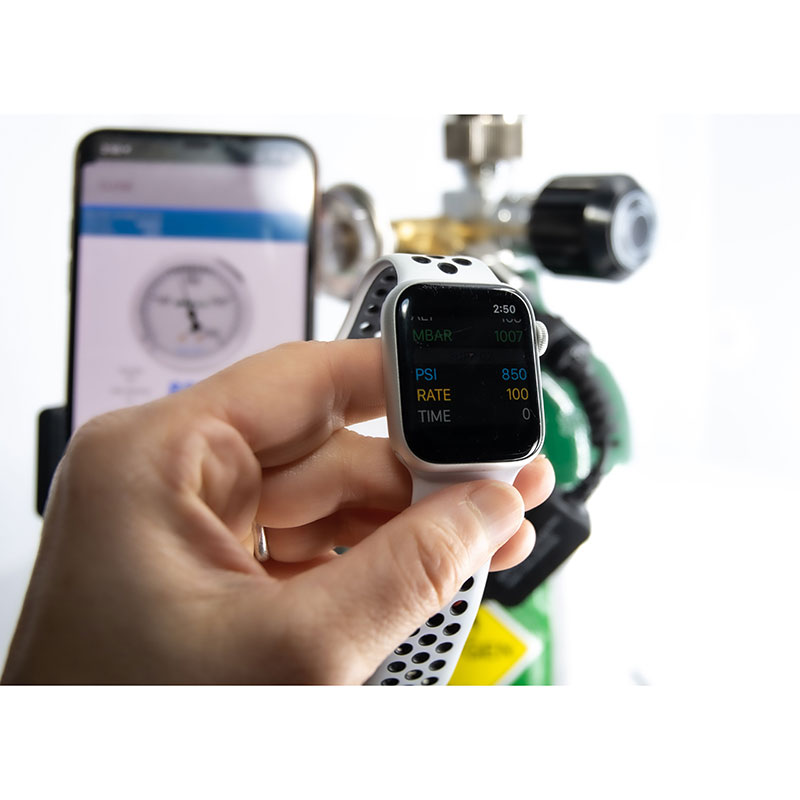

iOS Enabled:- Includes iOS/WatchOS app with Siri voice notifications via a paired headset
- Detects pressure changes with a resolution of 10psi between 100-2500 PSI
- Updated pressure readings are sampled every 12 seconds
- Flow rate and time remaining are continuously calculated, and pressure altitude is tracked to recommend altitudes for oxygen use
- Get Siri notices when you cross FAA pressure altitude levels or custom selected altitudes, receive a warning when oxygen drops below 500psi, and get a reminder when you land to shutoff flowing oxygen
- Use the provided USB power bank or a USB aircraft receptacle (or ask us for the 5V dedicated power and analog output wire option for experimental aircraft)
- Includes high-pressure tee fitting so you keep your manual pressure gauge as a backup
- Put your portable tank PSI wirelessly on your Dynon Skyview, Garmin G3x, and Advanced Flight Systems avionics with the EX 3.0 companion product (or ask us for the 5V dedicated power and analog output wire option for experimental aircraft)

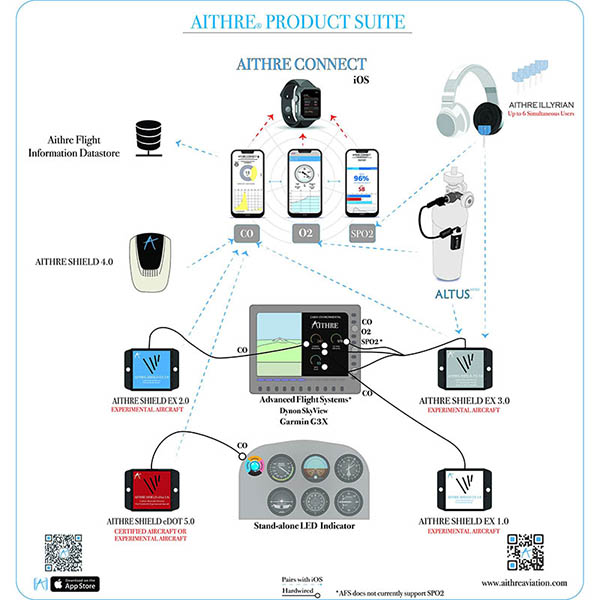

- Use the same app with other Aithre devices to monitor carbon monoxide levels and pilot and passenger blood oxygen levels.
Specifications
- Installation is easy:

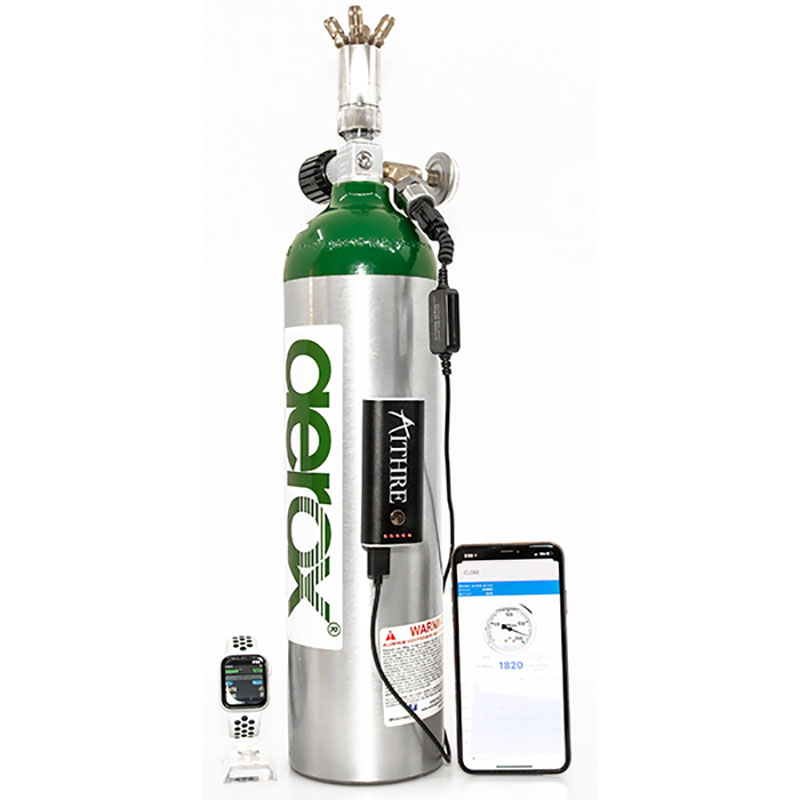

- 1. Just empty your tank and insert the supplied sensor fitting between your tank and the old pressure gauge.
- 2. Refill your tank and plug the USB power into ship power or the supplied power bank. No on/off switch and no manual pairing required.

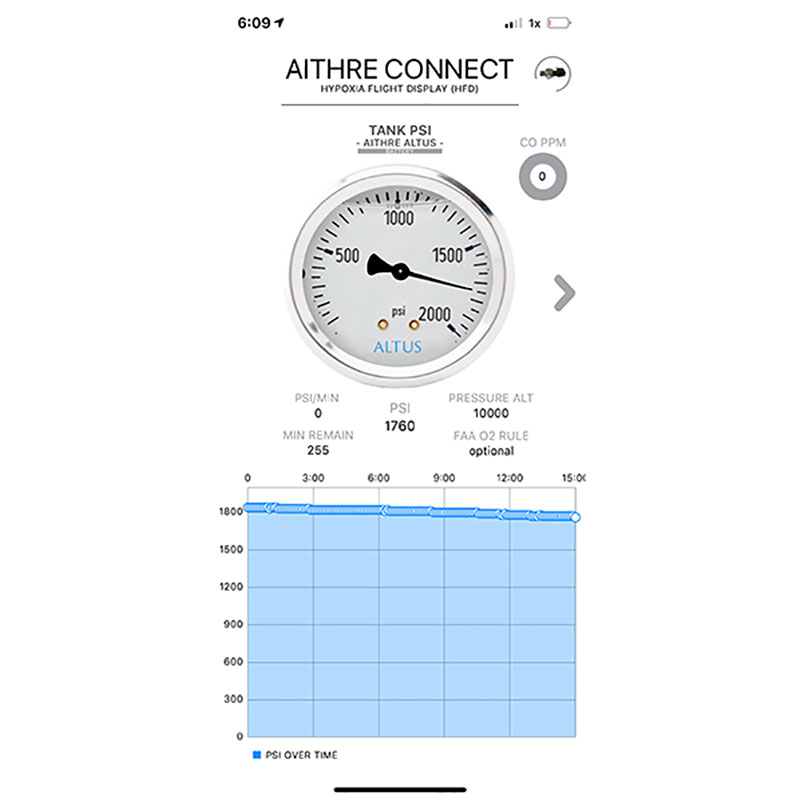

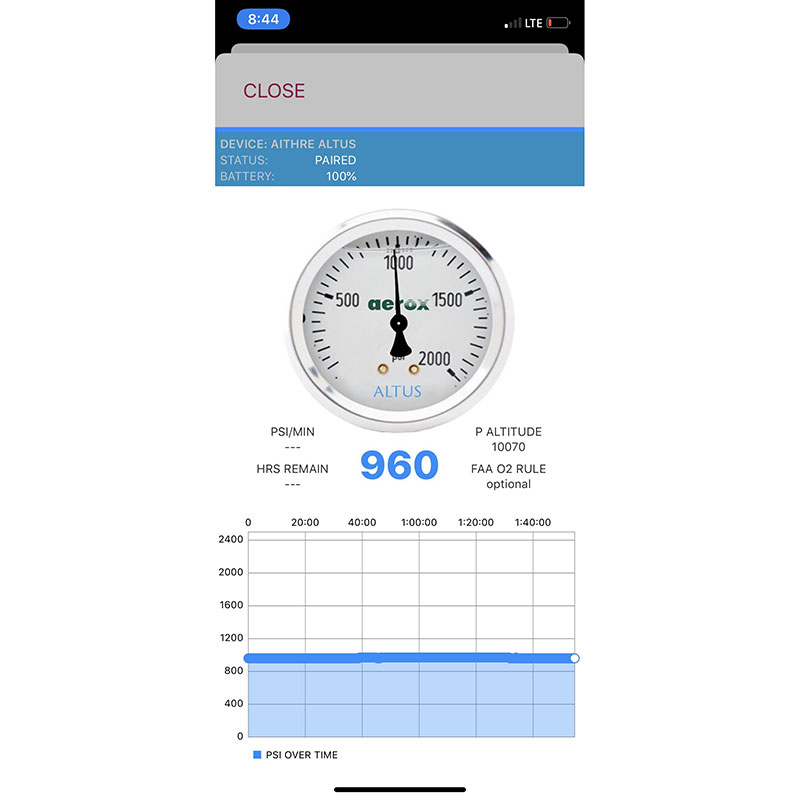

- 3. The tank pressure will be automatically shown on the graphical gauge in the iOS/WatchOS app and on your Dynon or G3X (this feature requires the companion EX 3.0 CO detector).
- Designed and made in: Ketchum, Idaho by pilots (6000 MSL)
Documents

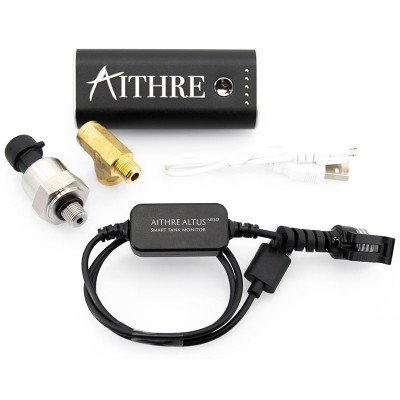

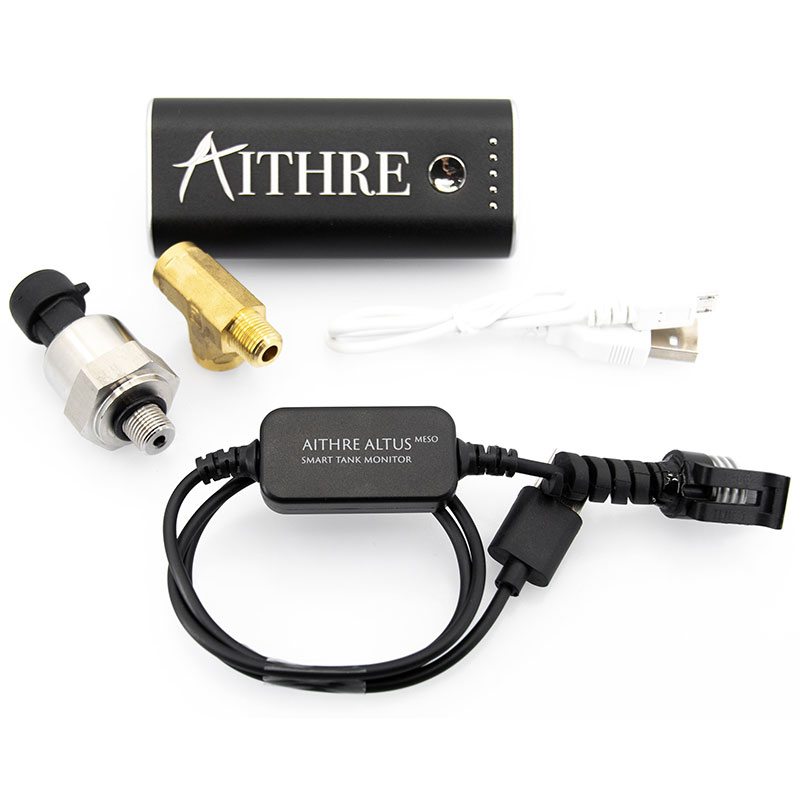

In The Box
- 1 - High-pressure quick-disconnect sensor
- 1 - High pressure-rated t-fitting expansion for 1/8" NPT size ports (typical on all oxygen tanks)
- 1 - USB power bank
- 1 - iOS/WatchOS app downloadable from the Apple App Store.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
