Photo may represent series and not specific product

Brackett Towbar Adapters

16 Reviews 4 Answered Questions

From $14.55 to $156.75

Brackett Model No.	Aircraft	Size	Part Number	Price	Buy
T-1030	Aerostar 600, 700P Baron, Bonanza Axle Towing (L)	2 Required	13-18775	$39.50	Quantity
T-1100	Universal	1.1 OD .750 OD (2 Required)	13-16089	$50.50	Quantity
T-1375	Universal	1.375 ID 1.750 OD (2 Required)	13-16090	$48.75	Quantity
T-1500	Universal	1.500 OD (2 Required)	13-16091	$36.65	Quantity
T-260	Universal	2.60 OD (2 Required)	13-16092	$32.90	Quantity
T-349	Universal	.349 OD (2 Required)	13-16095	$32.90	Quantity
T-375	Socata Trinidad, Tobago	2 Required	13-01893	$32.90	Quantity
T-451	Pilatus PC12 / TBM 700	.451 OD (2 Required)	13-16096	$35.50	Quantity
98404A011	Quick Release Pin	--	13-18776	$14.55	Quantity
T-840	Extender / Piper / Arrow / Lance	.840 OD .640 ID	13-16104	$32.90	Quantity
T-820	Malibu / Mirage / Meridian	.820 OD (2 Required)	13-16103	$32.90	Quantity
T-475	Universal	--	13-01894	$32.90	Quantity
T-515	Bell	.515 ID (2 Required)	13-16098	$32.50	Quantity
T-535	Epic LT	2 Required	13-18777	$32.90	Quantity
T-625	Augusta 109	2 Required	13-01895	$42.55	Quantity
T-700	Diamond DA-42	.700 ID (2 Required)	13-16099	$32.90	Quantity
T-730	L-39 Jet / T-28 Lancair Albatros Aero L39C / L39ZA (L)	.730 OD .320 ID (2 Required)	13-16101	$32.90	Quantity
T-MAULE	Maule Tailwheel	--	13-01897	$156.75	Quantity
T-750	Commander	2 Required	13-01896	$34.70	Quantity
T-795	Piper / Lance / Saratoga	.795 OD .320 ID (2 Required)	13-16102	$32.90	Quantity
T-PC6	Pilatus PC-6	2 Required	13-18778	$32.50	Quantity
TWA-10	Champion Aircraft	2 Required	13-10089	$43.65	Quantity
TWA-11	Howard DGA	2 Required	13-01891	$42.50	Quantity
TWA-DH	Baron, Bonanza Axle Towing (R) Dehaviland Beaver DHC-2	2 Required	13-18779	$53.75	Quantity
T-910	Albatros Aero L39ZA (R)	--	13-18780	$34.50	Quantity
T-960	Albatros Aero L39C (R)	--	13-18782	$32.90	Quantity
T-DEX	Duchess	.750 OD (2 Required)	13-16105	$40.99	Quantity
T-N182	Cessna 152, 172, 182, 206	.625 ID (2 Required)	13-16106	$33.60	Quantity
T-P228	Piper PA-22, 28 / YAK 18 / GIPPSAERO GA8	(2 Required)	13-15488	$32.90	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

Overview

Note: Quick release pins are included with adapters.

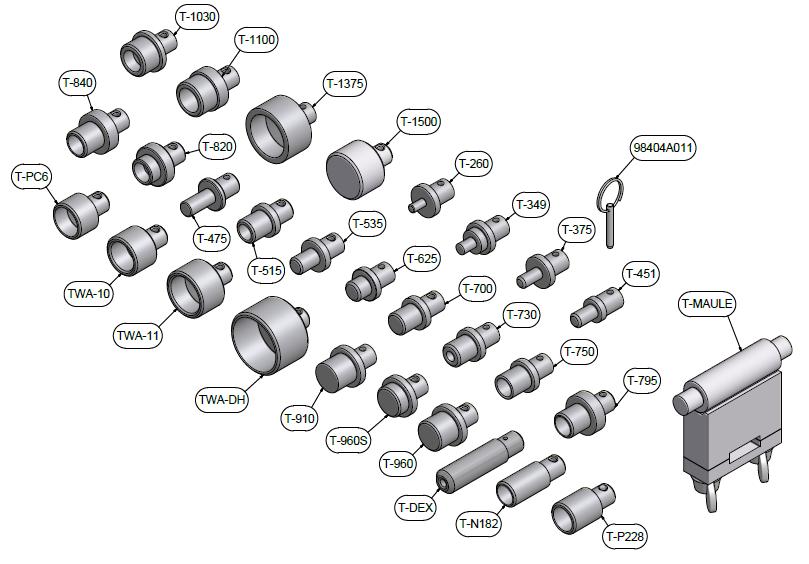

Brackett Adapters.

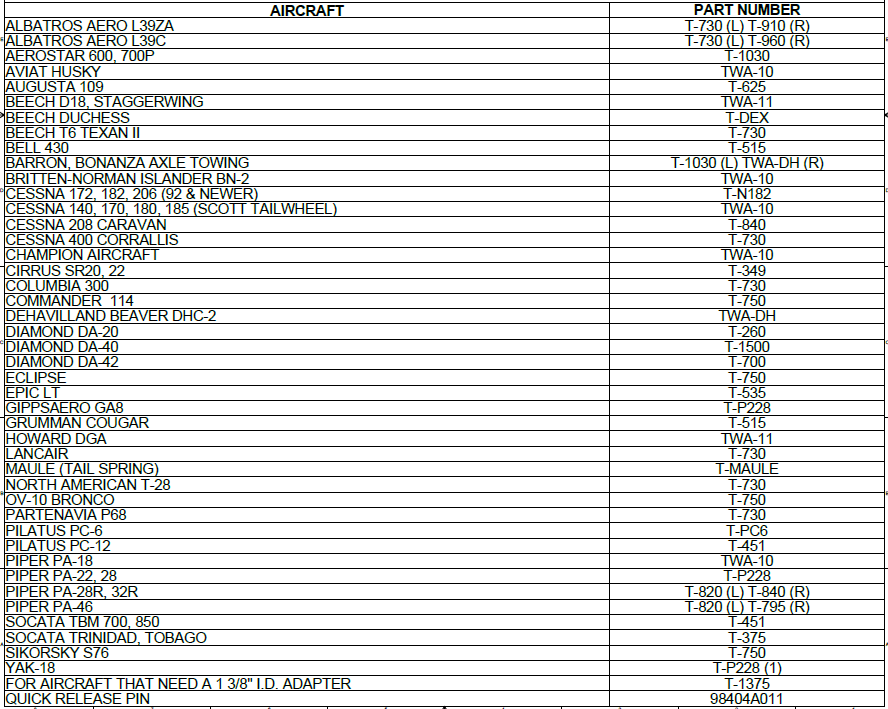

Aircraft Application Guide

Name: Brackett Towbar Adapters
Brand: Brackett
SKU: 13-18775
Price: 39.5 CAD
Availability: InStock
Rating: 4.81 (16 reviews)

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Ari S

Verified Purchase

Brackett Adapter Malibu Mirage Meridian .820 OD Requires 2

November 29, 2024

Handy adapter

Gkc A

Verified Purchase

Brackett Aircraft Piper Cherokee Adapter (Quarty 2 Required)

September 9, 2024

Excellent product!!

Michael V

Verified Purchase

Brackett Aerostar 600 700P Adapter

January 17, 2024

I had purchased a used TR-3 tow bar and the owner of Brackett Aircraft helped me convert the tips to the new style TR-34 tips. Roy was amazing and sold me all the pieces and gave me technical drawings. Once complete, these adapters fit perfectly and now I have a tug tow bar that is perfect for my Piper Lance!

Eric W

Verified Purchase

Brackett Adapter Malibu Mirage Meridian .820 OD Requires 2

December 13, 2023

Fit my DA 62 as advertised

Donald D

Verified Purchase

Brackett Adapter Diamond Da-42 .700 OD Requires 2

August 13, 2023

Fits perfectly on the VL3

Alex W

Verified Purchase

Brackett 3/4 Adapt For Commander

May 24, 2023

Anthony Z

Verified Purchase

Brackett Aircraft Piper Cherokee Adapter (Quarty 2 Required)

May 24, 2023

This is an perfect fit towbar for PC-12. Due connection at wheel axle towbar stays nicely clear of propeller

Bart S

Verified Purchase

Brackett Pilatus PC12 Tbm 700 Adapter .451 Ok Requires 2

January 28, 2023

Order this adapter for my RV9a, I tested and it fits great.

Rico B

Verified Purchase

Brackett 3/4 Adapt For Commander

September 22, 2022

Jacques V

Verified Purchase

Brackett Universal Extender Adapter 1.1 OD .750 I.D. Requires 2

August 16, 2022

Good fit.

Bob C

Verified Purchase

Brackett Universal Adapter Cirrus .349 OD Requires 2

June 6, 2021

Great product works well, well made. Recommend to everyone

David K

May 13, 2021

Bought 2 T-750 tips for use on RV nosewheel, as recommended. They are beautifully made. But two notes. 1/ the tips come with the needed pins, so the two pins I bought are not needed. I didnt see a comment on that in the item page, but I see it in the comments of Jim F. 2/ the T-750s are short, too short to get through the existing hole in my nosewheel fairing. I could try to enlarge the hole, but will see if the T-N182 tips, which have a longer reach, will accommodate the RV nosewheel axle bolt.

Michael C

January 1, 2019

Well-machined part that shows typical good Brackett quality. The description needs to be updated to let you know that the part includes a set of .25 quick release pins so that you dont order an additional set unnecessarily (like I did!).

Jim F

December 14, 2017

Bought for HA420 Hondajet for use on a Brackett 34 towbar. They come with quick remove pins and fit snug in the tow bar. However they do have a lot of clearance on the nosegear so there is some slop at that point. Looked at several suppliers that had 3-4 week delivery, Aircraft Spruce had 3 of the 6 I required in stock and I had them in Canada within a few days of the order.

John S

January 14, 2019

I had hoped the quick release pin would fit my tow bar, but my tow bar requires a 1/4 pin and this pin is much smaller (3/16 or smaller?)

David F

January 14, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which adapter (if any) do I need for a 1963 Cessna 172D?

You will need two of P/N# 13-16106.

Q: Which p/n would I need for a Cessna Cardinal RG 1977

This aircraft would not require an adapter to work with the Brackett tow bars.

Q: Which adapter should I use for a Cirrus SR22T?

You would need 2 x T-349 adapters, our part number 13-16095.

Q: Do these fit the TR-34 towbar?

Yes, this will work with the TR-34 towbar.
