Brackett Towbar Th-53R With Ring Hitch
MFR Model# TH-53R
Overview
|

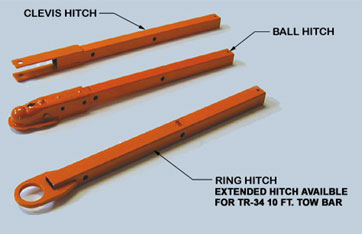

This towbar fits in our line between the TH-5 and the TR-34. The Th-53 comes with a telescoping tongue (R) ring or (B) ball, for easier hookups. The TH-53 can handle most singles and medium twins up to 7000 lbs. ramp weight.

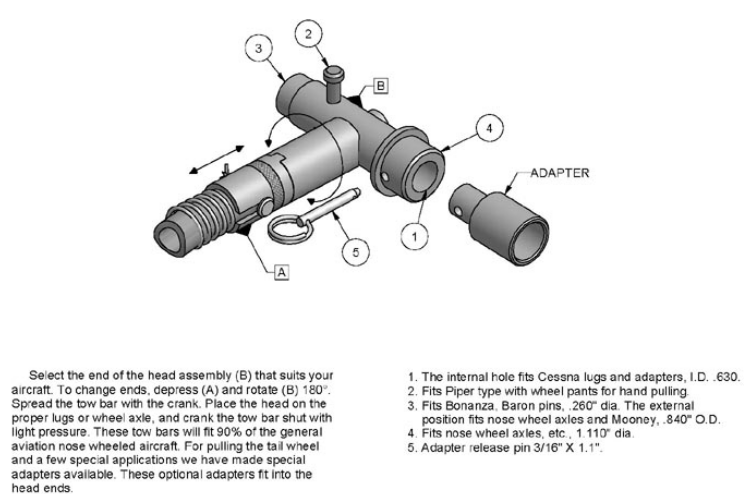

Click Here for Aircraft Specific Adapters for the Brackett Universal Towbar |
Reference Chart
Description | Part No. |
BRACKETT TOWBAR TH-53R | 13-03338 |
TOWBAR W/ BALL HITCH TH-53B | 13-03339 |
TOWBAR W/ CLEVIS HITCH TH53C | 13-03340 |
Specifications
- Maximum aircraft weight: 7,000 lbs. (3,175 kg)
- Maximum opening 12 1/2" (31.75 cm)
- Length: 80" (203 cm) closed, 94" (234 cm) extended
- Weight: 22 lbs. (9 kg)
- Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
- Color orange powder coating
Reference Chart
Reviews
Great product, the best universal tow bar on the market.
Verified Purchase
Brackett Towbar Th-53R With Ring Hitch
Very well made, easy to use. Game changer
Verified Purchase
Brackett Towbar Th-53R With Ring Hitch
AWESOME! Fast shipping. Used to tow a E55 Baron with a 36V EZGO golf cart and a 2in Pintle Hitch.
Verified Purchase
Brackett Towbar Th-53R With Ring Hitch
Very heavy duty tow bar- Overkill for my Skylane but will still work if I ever buy a twin. Works well with the golf cart I use to pull it out of the hangar.
Verified Purchase
Brackett Towbar Th-53R With Ring Hitch
Tow bar came shipped as promised and worked perfectly as illustrated on a Cessna 310. Thanks for good shopping experience.
Aircraft grade quality and construction. Completely satisfied. Customer service at Spruce is A+++
Very well made and very easy to use.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
You would need qty 2 of part number 13-01896.
You do not need adapters to use this tow bar with both of these aircraft.
Yes.
Mooney aircraft do not require additional adapters.
Yes, this should attach to the nosewheel of the PA24.
The Bonanza wouldnt require adapters, but the TBM would need qty 2 of our part number 13-16096.
No it does not.
You would need qty 2 of our part number 13-16099.
No adapters are required for this application.
Those aircraft do not require adapters to use this tow bar.
