Flexible White / Green / Red LED Light Strip Glare Shield Lighting And Dimmer By Spt
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

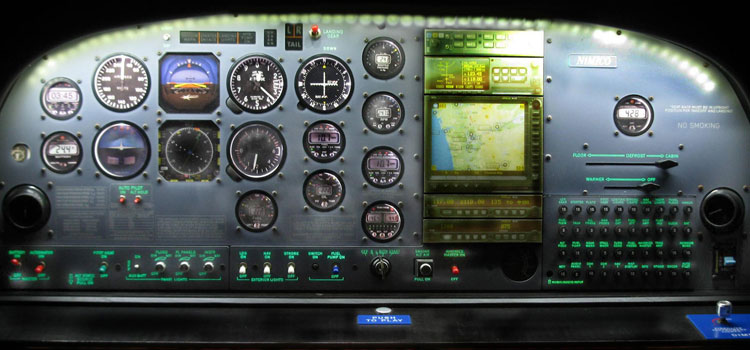

Superior Panel Technology has developed a brighter, wide-angle LED Light strip with your choice of RED, GREEN, or WHITE for aircraft panel illumination. The 39” LED light strip includes 60 wide-angle LEDs. The LED light strips are adaptable for both 14V and 28V aircraft and can be cut to length as needed (every third LED). When on full power, the LEDs produce a nice flood light that is amazingly bright and produce enough light to read charts.
The LEDs are fully dimmable using the SPT Pulse-Width-Modulation (PWM) dimmer that was specifically designed for the low current draw LEDs. The dimmer allows for a gradual dimming without the brightness steps often found in dimmers not designed for low current draw items. The very compact dimmer is only 1” wide and is VERY easy to wire. There is a + (power in), - (ground) and terminal for power out to the lights! You can choose to have an internal circuit breaking off switch in the dimmer or a dimmer without a circuit breaking off switch (normally only used when a master lighting switch is used to cut power to multiple dimmers. See article in the document section on "Choosing the Correct Dimmer". Aircraft Spruce and SPT have worked together to offer a discount on the LED Light Strip and PWM Dimmer when purchased as a package. The SPT LED Light Strips also pass the FAA burn test 14CFR 23.853 (a) and a copy of the burn test results is included with the light strips. SPT OFFERS AN INDUSTRY-LEADING 5 YEAR WARRANTY ON THEIR PWM DIMMERS! |
Documents
- Choosing the Correct Dimmer (PDF)
- Installation Instructions (PDF)
- Wiring Diagram (PDF)
Reviews
Verified Purchase
SPT Green Light Strip And Dimmer With Switch
WORKS FINE
Verified Purchase
SPT White Light Strip And Dimmer Switch
Nice product, but for the price youd think the conductors would already be soldered to the LED strip. It is very nice how thin the profile is however.
Verified Purchase
SPT White LED Light Strip 14V Or 28V
installed in my Grumman in accordance with my interpretation of AC 23-27 works great so far.
Verified Purchase
SPT Red Light Strip And Dimmer With Switch
Works great, provides good light and the dimmer is outstanding. Fairly easy to install if you can solder. The shrink tube with sticky backing did not work but a little liquid electrical tape works just fine. Would order again and have told other pilots about the product. 337 was simple.
Verified Purchase
SPT White LED Light Strip 14V Or 28V
Installed in C303 white LED and dimmer switch with on/off option. Under glare shield lights were so bright at max setting that installed quarter round to shield eyes. Easy installation and LEDs provide great full panel and throttle quadrant illumination. Panel had been retrofitted with all Aspen displays and old post lighting removed. Can now read maps on kneeboards and make notes as needed at night. Dimmer works perfectly to provide the light needed at night.
Verified Purchase
SPT Red Light Strip And Dimmer With Switch
These were super easy to install and the results are absolutely great. Don’t hesitate to buy these.
Verified Purchase
SPT Red LED Light Strip 12V Or 28V
Great product, easy to fit and good value.
Excellent backup light. Had it installed in a Cessna 182 and a 421C, always with the battery backup option. When it is installed in the airplane, under the glareshield, make sure the lights can not be seen by the pilot, they are very bright and will be blinding.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The LED light strips are not STC'd and a 337 should be obtained for certified aircraft. This light strip does pass the FAA 23.853 burn test and a copy of the test results are included with each light strip.
No, these are not FAA Approved.
Two dimmer options are available. The dimmer option "with-off switch" does have a built-in circuit breaking internal switch that does break the circuit. The dimmer without the off switch will fully dim the lights, however, the circuit will still be active (similar to all of the MaxDim dimmers). This option can be chosen in situations where there is a master lighting switch that breaks the circuit.
Yes, this light strip should work just fine with the MaxDim dimmer.
Per Manufacturer - Yes, you can run as many strings together on one dimmer as you want (up to 15'). The LED strips have solder tabs on them. Solder them in parallel to do this (for 14V). For 28V system you must contact manufacturer for proper installation.
The manufacturer does not have a lumen spec for these but they are very bright when turned on fully.
These are one color. They can be ordered in either RED, GREEN, or WHITE.
It is a soft white per the vendor.
3/8" inch wide, an overall thickness of less than 1/16" and, to be more exact, .040".
This dimmer can handle 14 volts @ 7 amps and 28 volt @ 3.5 amps. Based off the radio amperage requirement it may work or the extreme power dimmer 14 volt @ 14 amp and 28 volt @ 7 amp would be better.
