Photo may represent series and not specific product

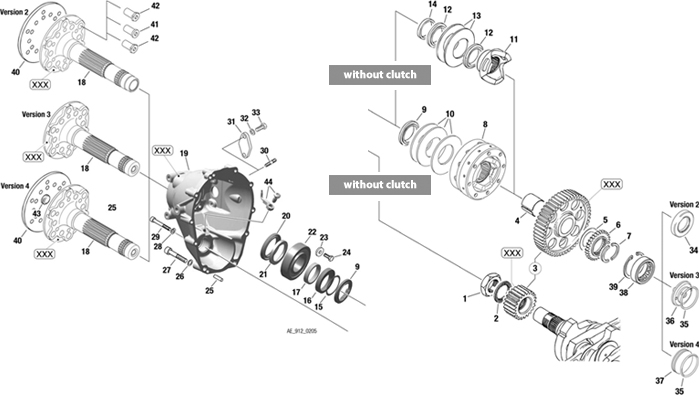

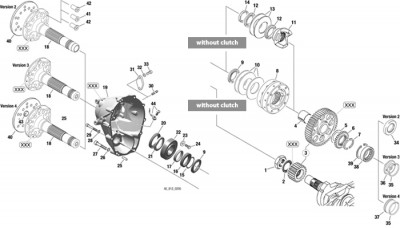

Rotax 912 | 914 Ul Propeller Gear Assembly

0 Reviews 0 Answered Questions

From $2.88 to $1391.00

(Hover to zoom | Use mouse wheel for +/-)

No.	Rotax Number	Description	Qty Req. 912 UL	Qty Req. 912 ULS	Qty Req. 914 UL	PN	Price	Buy
3	886-517	GEAR SET I 2.43 NARROW	(1)h		1h	15-02336	$1391.00	Quantity
13	838-216	DISK SPRING B80, 80x41x3	2	2	2	15-10118	$99.75	Quantity
16	848-225	ECCENTER	1	1	1	15-01397	$102.75	Quantity
23	944-320	WASHER 7.2/18.8/3	4	4	4	15-03326	$2.88	Quantity
27	841-562	ALLEN SCREW M8X45 CERTIFIED	2q	2q	2q	15-10139	$7.99	Quantity
35	430-175	O-RING 46X3	1	1	1	15-00525	$14.50	Quantity
39	945-820	RETAINING RING 52X2	1	1	1	15-03376	$4.35	Quantity
40	827-837	COVER DISK	AR	AR	AR	15-00866	$124.95	Quantity
42	842-639	HEX.NECK NUT SET 5/16-20UNF	1i	1i	1i	15-01271	$77.75	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

JUMP TO
Overview
Notes
Propeller Gear Assembly
Reviews
Q&A

Overview

- Items not illustrated

A For version 2 with narrow dog gear (22 mm / 0.87 in.)
B For version 3 with narrow dog gear (22 mm / 0.87 in.)
C For version 4 with narrow dog gear (22 mm / 0.87 in.)
D For version 2 with wide dog gear (27 mm / 1.06 in.); For 914 use only from following engine S/N: 914 F: 4420164 / 914 UL: 4417791
E For version 3 with wide dog gear (27 mm / 1.06 in.); For 914 use only from following engine S/N: 914 F: 4420164 / 914 UL: 4417791
F For version 4 with wide dog gear (27 mm / 1.06 in.); For 914 use only from following engine S/N: 914 F: 4420164 / 914 UL: 4417791
G Replacement for 887-701 with wide dog gear
H Replacement for 887-706 with wide dog gear
I Replacement for 887-711 with wide dog gear
J Replacement for 887-680 with wide dog gear
K Replacement for 888-565 with wide dog gear

a Drive gear 22 T. and reduction gear 50 T. are paired and must be replaced together and marked with S/N. See SL-912-002 resp. SL-914-002.
b Drive gear 21 T. and reduction gear 51 T. are paired and must be replaced together and marked with S/N. With wide dog gear (27 mm / 1.06 in.); See SL-912-002 resp. SL-914-002; For 914 use only from following engine S/N: 912 S: starting with serial production / 912 ULS: starting with serial production / 914 F: 4420164 / 914 UL: 4417791
c For model 2 marked with S/N
d For model 3 marked with S/N
e For model 4 marked with S/N
f For gear sets part no. 886-125 and 886-517; (narrow versions)
g For gear set part no. 886-518; (wide version)
h Drive gear 21 T. and reduction gear 51 T. are paired and must be replaced together and marked with S/N. With thin dog gear (22 mm / 0.87 in.); See SL-912-002 resp. SL-014-002; For 914 use only up to S/N: 914 F: 4420163 / 914 UL: 4417790
i Do not use at version with auxiliary alternator; only available as a set (includes 6 pieces).
j Only when a governor is used; Version without governor: 2x940.591; with governor: see chapt. 61-20-00
l Dog hub with extended hub
m With additional bores to drain lead
n Increased support bearing diameter
o See SL-912-002 current issue
p Gearbox with oil spray nozzle. Starting with Gearbox SN 74000.
q Replaced by hex. torx screw part no. 940077.

Explanations of symbols and statements in part number charts:

N = Newly introduced part number
s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
CALL = Please call for price, 800-247-9653

Notes

No.	Status	Part No.	Description	912 UL	912 ULS	914 UL
12		847-785	STEP COLLAR	2	2	2
13		838-215	DISK SPRING B80, 80X41X3	2	2	2

Propeller Gear Assembly

FIG. & ITEM NO.		PART #	DESCRIPTION	912 UL	912 ULS.	914 UL	PRICE
WITHOUT POS. 1, 2, 34-39			I = 2,27
		887-281	GEARBOX WITH CLUTCH 2.27-2	1A
		887-271	GEARBOX WITH CLUTCH 2.27-3	1B
		887-286	GEARBOX WITH CLUTCH 2.27-4	1C
		996-605	GEARBOX WITHOUT CLUTCH 2.27-2	1A
		996-609	GEARBOX WITHOUT CLUTCH 2.27-4	1C
WITHOUT POS. 1, 2, 34-39			I = 2,43
		887-708	GEARBOX WITH CLUTCH 2.43-3		1E	1E
		887-703	GEARBOX WITH CLUTCH 2.43-2		1D	1D
		887-713	GEARBOX WITH CLUTCH 2.43-4		1F	1F
		888-560	GEARBOX WITHOUT CLUTCH 2.43-2		1D	1D
		888-565	GEARBOX WITHOUT CLUTCH 2.43-4		1F	1F

FIG. & ITEM NO.		PART #	DESCRIPTION	912 UL	912 ULS.	914 UL	PRICE
POS.1-8			I = 2,43
	s.v.	887-701	GEARBOX WITH CLUTCH 2.43-2	(1)o		1A
	N	887-703	GEARBOX WITH CLUTCH 2.43-2	(1)o		1G
	s.v.	887-706	GEARBOX WITH CLUTCH 2.43-3	(1)o		1B
	N	887-708	GEARBOX WITH CLUTCH 2.43-3	(1)o		1H
	s.v.	887-711	GEARBOX WITH CLUTCH 2.43-4	(1)o		1C
	N	887-713	GEARBOX WITH CLUTCH 2.43-4	(1)o		1I
	s.v.	887-680	GEARBOX WITHOUT CLUTCH 2.43-2			1A
	N	888-560	GEARBOX WITHOUT CLUTCH 2.43-2			J
	s.v.	887-685	GEARBOX WITHOUT CLUTCH 2.43-4			1C
	N	888-565	GEARBOX WITHOUT CLUTCH 2.43-4			K
