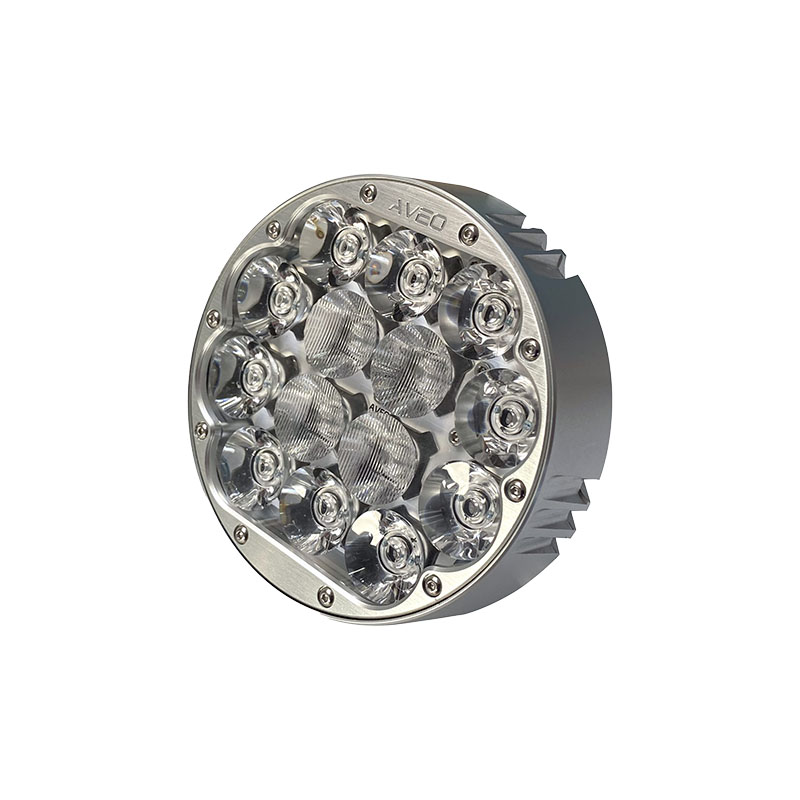

Aveo Hercules NXT Landing / Taxi / Wigwag Light Non TSO

Select Holder:
StandardO HolderQ Holder
Quantity
Add to Wishlist

Overview

Hercules NXT™ is a high powered Landing and Taxi LED light used in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft.
  • Landing
  • Taxi
  • WigWag Function
  • Hi-Lo Function
  • Simple installation with holder
  • High performance
  • PAR 36

Specifications

Dimensions: See photo above
Weight:
  • AVE-HXTTLFW-D01 - 460 g / 1.014 lb
  • AVE-HXTTLFW-D02 - 492 g / 1.084 lb
  • AVE-HXTTLFW-D03 - 483 g / 1.064 lb
Operating Voltage Range: 9 – 36 V DC
Input Current (Landing): 2.5 A @14V, 1.3 A @28V
Input Current (Taxi): 1 A @14V, 0.55 A @28V
Input Power (Landing): 35 W @14V, 36.4 W @28V
Input Power (Taxi): 14 W @14V, 15.4 W @28V
Ambient Temperature: from -55°C to +85°C, from -67°F to +185°F
Transient Voltage: 80 V max
Over-Voltage Lockout: 36 V DC, not less
Landing Lens Angle: 10°
Taxi Lens: 10° x 45°
Reverse Polarity Protection: Yes
Overheat Protection: Yes (temperature dependent decrement of intensity, see note below)
Waterproof, Dust-proof, Vibration-proof: Yes
Useful Life: Not less than 15,000 aircraft flight hours
