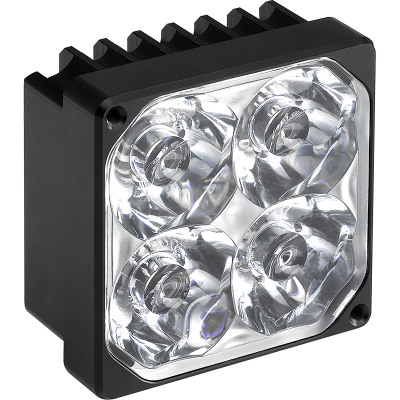

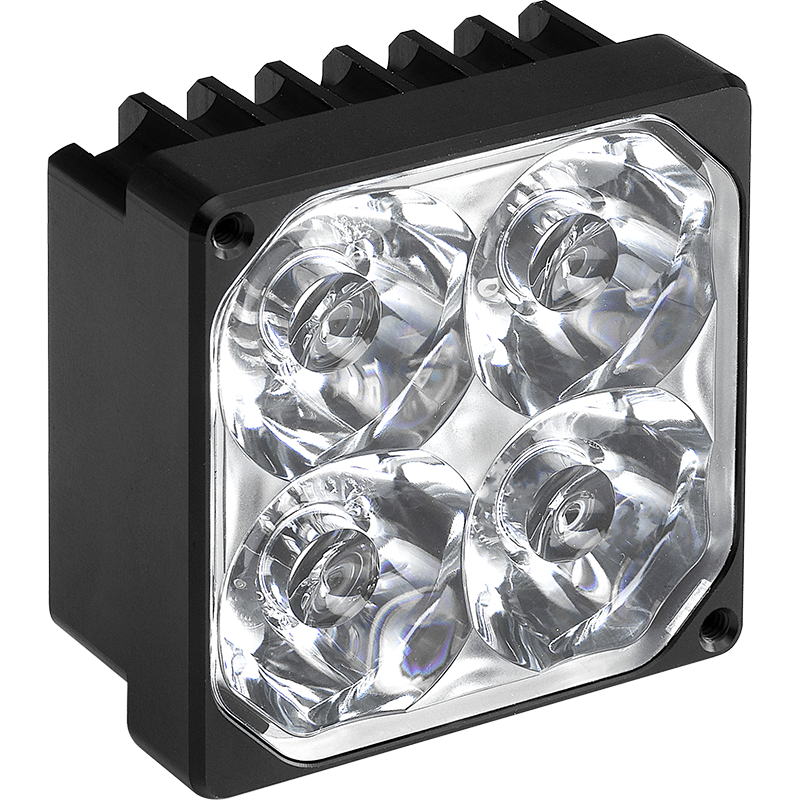

AeroLEDs Sunray EVO III Light Non TSO
MFR Model# 01-1150
Overview
| SunRay™ EVO III LED is a newly optimized version of our long-trusted SunRay Plus landing light. Now with almost 4X the performance, this compact and versatile LED can be mounted virtually anywhere on the aircraft. SunRay EVO III comes standard with AeroLEDs’ signature Pulse (wigwag) functionality. The Pulse controller is fully integrated into the light and requires no external circuitry. This feature significantly increases recognition in daylight as well as night operations, aiding in collision avoidance and reduced bird strikes. In dual or quad light installations, while operating in wig-wag mode, this self-contained pulse function reduces load on the aircraft electrical system by 50%. |
Features
- 4X the performance
- Power: 35W
- System Requirement: 9-30V
- Lumens: 3,850
- Candela: 90,000+
- 5 year warranty
- >30,000 hour MTBF
- Integrated pulse function option
Specifications
| SunRay EVO III | |
|---|---|
| Part Number | 01-1150 |
| Voltage | 9-30 |
| Current | 2.5A at 14V 1.3A at 28V |
| Power | 35W |
| Wigwag | Yes |
| Synchronization | Yes |
| Lumens | 3,850 |
| Candela | 90,000 |
| Beam Profile | 20° x 20° |
| Length | 2.65" |
| Width | 2.65" |
| Depth | 1.2" |
| Weight | 4.5 oz |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
10W

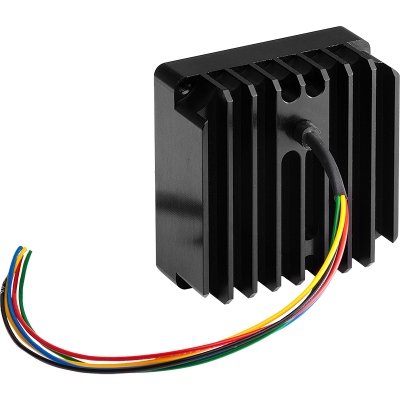

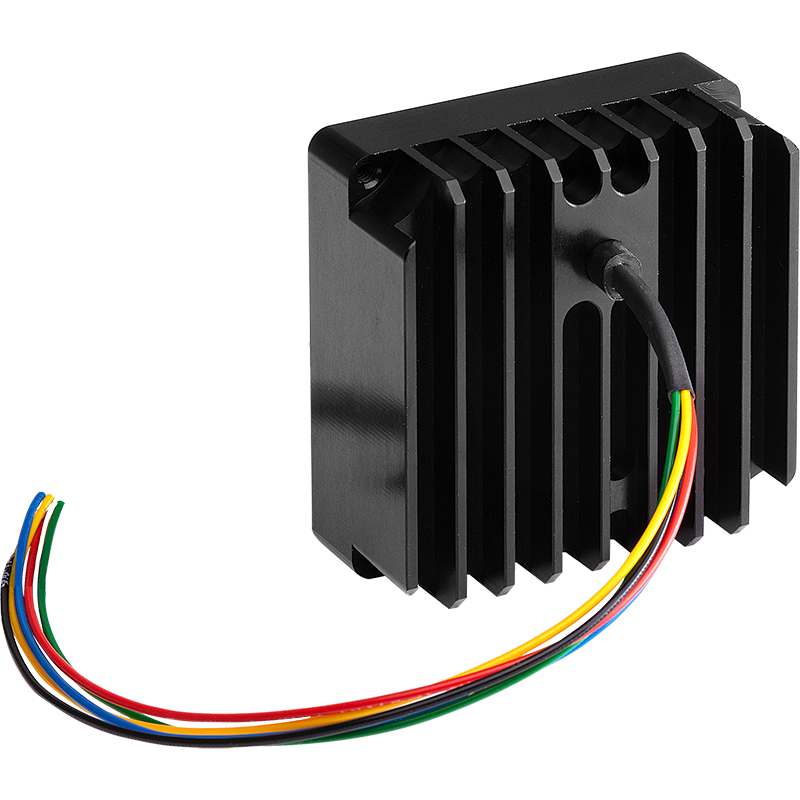

The two holes in the front are 6-32 thread, and are 1/4" deep. There is also a 10-32 threaded port on a side surface. Installation and tech data information is listed in the Documents Tab on our web page.
These are priced and sold individually, one per order.
This is not waterproof but it is water resistant. Meaning if it was sprayed with a hose it should be fine but it cannot be submerged in water.
Per Aeroleds: We do not know of an RF noise issue with this light. We do recommend using shielded wire if the wires are going to be run near radio wiring just in case.
2.65" Length x 2.65" Width x 1.2" Depth. Weights 4.5oz
