Alpha Aviation Jack Seal Kits

From $40.99 to $49.65
Description Part Number Price Buy
3 Ton For Alpha Aviation Jacks With RAM Diameter 1.25 (1-1/4)
05-22907
$49.65
Quantity
8 Ton For Alpha Aviation Jacks With Ran Diameter 1.25 (1-1/4)
05-22908
$40.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

3 Ton Jack Seal Kit for Alpha Aviation Aircraft Jack Models #324W (324) / #326W (326) / #332W (332) with 1-1/4" diameter ram only.

8 Ton Jack Seal Kit for Alpha Aviation Aircraft Jack Models #838W, 868W, 838HLW or 868HLW with 1-1/4" diameter ram only

Specifications

  • 3 Ton Cylinder: 6,000# ram capacity
  • 8 Ton: 868W 16,000# ramp capacity

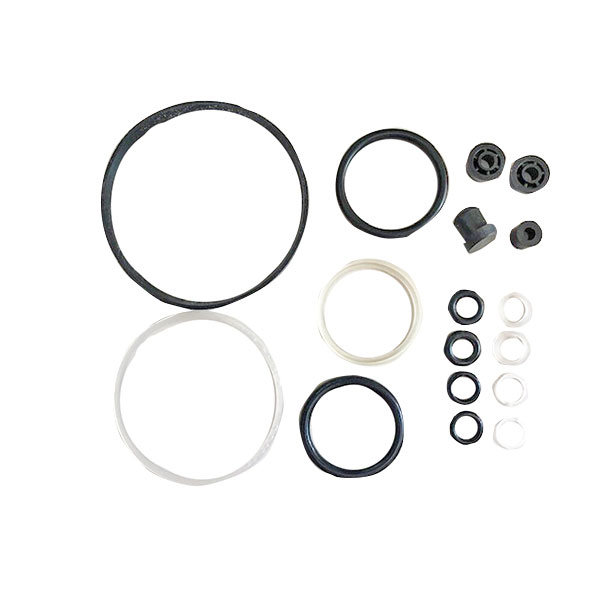

In The Box

3 / 8 Ton
  • 1 - Valve body to housing
  • 1 - Top cast iron gland to housing
  • 1 - Top cast iron gland to Ram
  • 1 - Ram shaft bottom
  • 1 - Seal Support - Ram shaft bottom
  • 1 - Control Valve
  • 2 - Pump Piston .430 diam (black "o" ring)
  • 2 - Seal Support .430 diam
  • 2 - Pump Piston .470 diam (black "o" ring)
  • 2 - Seal Support .470 diam
  • 2 - Pump Piston .470 diam (black tapered cup)
