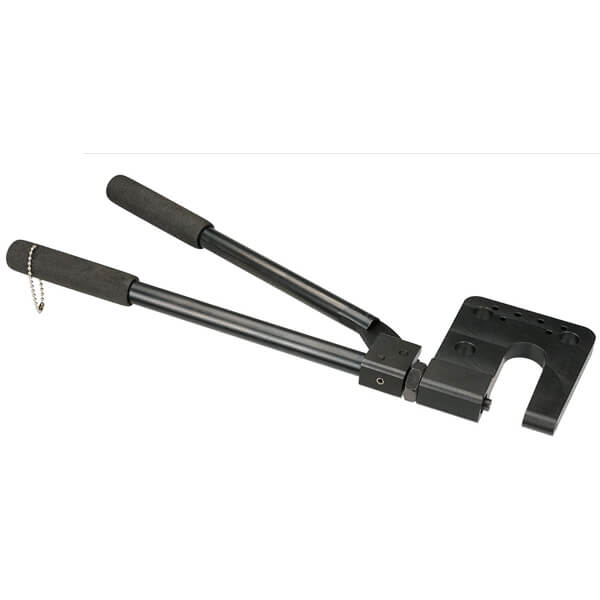

Pro Heavy Duty Rivet Squeezer

$244.95/Each
Quantity
Add to Wishlist
Part# 12-04961
MFR Model# 5011-1A

Overview

This is a heavy duty design that will hold up to even the most brutal punishment. The handles are formed from .060" thick cold-rolled steel tubing that resists bending, even under heavy pressure. The ram assembly is engineered to operate smoothly while delivering the maximum possible leverage without breaking - in fact, the ram assembly has been tested to 6,000 lbs without any indication of failure! The yoke head is precisely CNC machined from solid steel and case-hardened for extra toughness.

Lifetime warranty

Specifications

  • 1-1/2" Reach
  • 1-1/4" gap height
  • 3/16" aluminum rivet capacity
  • 360 degree swivel head locks yoke in any position for greater versatility. 5/8" adjustable ram eliminates the need for shims.
  • Longer handles for better leverage.
  • 3/16" aluminum (5/32" steel) rivet capacity.
  • 21" overall length.
  • Does not come with squeezer sets

Reviews

Works great. Aircraft Spruce was great to deal with. Will be buying from them again in the future.

Scott P
January 13, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the yoke on this hand squeezer be used interchangeably with the pneumatic squeezer?

No, it is not designed to be used with a pneumatic squeezer.

Q: Would like to buy, wondering squeezer shaft size?

This uses a 3/16 diameter shank for the rivet set (dies).
