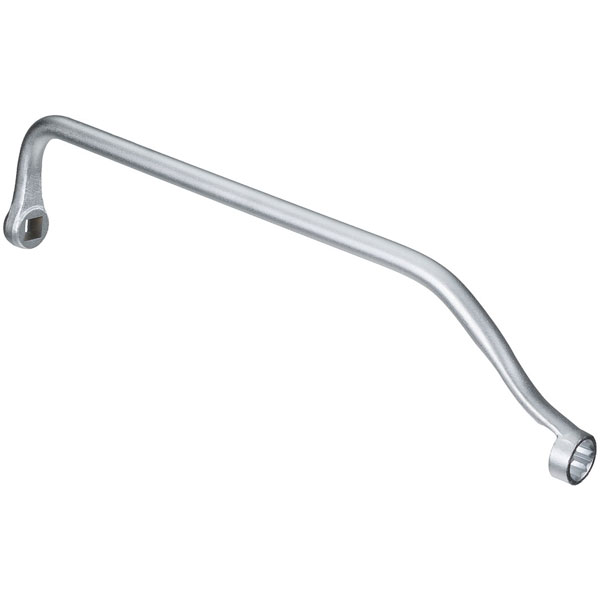

ATS Lycoming And Continental Cylinder Base Nut Wrenches
Overview
| The ATS 3882-series Cylinder Base Nut Wrenches are made from forged alloy steel, tempered, and hardened for maximum strength. They also have an industrial chrome plating to improve surface wear, and protect against rust and corrosion. Their thin-wall construction guarantees they will fit nuts close to the cylinder casing without grinding down the wrench’s outer diameter. And with a 15” span, they clear even the tallest cylinders. In fact, the 3882 Cylinder Base Wrenches address just about every concern of the previous 2882 series, while including several enhancements to make your work easier. They also carry the ATS Pro lifetime warranty, so they may very well be the last cylinder wrenches you’ll ever have to purchase. |
Features
- 1/2” Hex Size.
- Fits all Continental, most Lycoming, and many other types of aircraft engines.
- 15” (381mm) span fits around almost all aircraft cylinders.
- 0.14”(3.5mm ) thin wall fits into tight areas.
- 12-point end fits both hex 12-point nuts.
- 1/2” square drive.
- Forged from 4130 steel and tempered for maximum strength.
- Industrial chrome plating improves surface hardness and resists corrosion.
- Quality tested to meet or exceed engine manufacturers torque specs.
- Replaces our 2882 series wrenches.
- ATS Pro Lifetime warranty.
Application Eligibility
- 9/16" - Continental A50, A65, A75, A80, C75, C85, C90, C125, C145, 0-200, 0-300, G0-300, E-165, E-185, E-225, and IO-360 series engines.
- 1/2" - Continental A50, A65, A75, A80, C75, C85, C90, C125, C145, 0-200, 0-300, G0-300, E-165, E-185, E-225, and IO-360 series engines.
- 5/8" - Continental A-65, 0-470, and IO-520 engines.
- 3/4" - Lycoming Wide Deck engines, as well a the Lycoming models IO-390D & D2 engines. It is also used for some of the older Continental engines such as the original A-series.
Reviews
Does not work on a Franklin engine.
Verified Purchase
ATS 3882 9/16 Cylinder Base Wrench
Well made, quality tool that met my expectations and worked great.
Verified Purchase
ATS 3882 1/2 Cylinder Base Wrench
this wrench is OK for our O-320 but some others are not because of angle near the nuts.
Verified Purchase
ATS 3882 3/4 Cylinder Base Wrench
Worked great. Fit without grinding.
Verified Purchase
ATS 3882 9/16 Cylinder Base Wrench
Worked great. Fit without grinding.
Verified Purchase
ATS 3882 5/8 Cylinder Base Wrench
no issues, Worked great.
Verified Purchase
ATS 3882 3/4 Cylinder Base Wrench
Great tool inexpensive
Verified Purchase
ATS 3882 5/8 Cylinder Base Wrench
Great tool and inexpensive
Verified Purchase
ATS 3882 9/16 Cylinder Base Wrench
Nice tool and affordable
Verified Purchase
ATS 3882 5/8 Cylinder Base Wrench
Nice tool and affordable
Verified Purchase
ATS 3882 9/16 Cylinder Base Wrench
