Photo may represent series and not specific product

RV Builder Tool Kit

1 Review 1 Answered Question

From $58.90 to $5365.00

Description	Part No.	Price	Buy
Kit with 2x Rivet Gun Click Here for Kit Components	12-00890	$5365.00	Quantity
Kit with 3x Rivet Gun Click Here for Kit Components	12-00899	$5328.00	Quantity
RV-10 Bucking bar	12-00903	$58.90	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

Overview

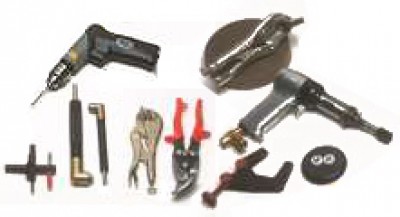

This RV builders tool kit is based on recommendations from the Van's Aircraft Builders Manual as well as on the tools that have been purchased from us by RV builders. It is an excellent tool kit for the construction of the RV4, 6, 7, 8, 9 and 10 aircraft. It includes an air drill, hand rivet squeezer, rivet sets and other tools of the highest quality. If you are building a RV-9 kit, order 100 extra 3/32" clecos and 50 extra 1/8" clecos. If you are building a RV-10 kit, order 175 extra 3/32" clecos and 125 extra 1/8" clecos as well as the RV-10 bucking bar. Click on the highlighted descriptions below to see what is included in each kit.

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Not a good game plan to buy this kit if building a Vans RV aircraft. While this kit does have ONLY a portion of the tools you need, many of the expensive ones are inferior considering what else is available from other companies today. It is very frustrating to have to stop progress to buy tools that are must have that were not included in this kit. Also a few tools are inferior quality. Dont buy this kit. Instead buy specifically what you need. Research before you buy.

Dan

March 20, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you get an updated picture of this tool kit and everything that's included?

If you click the link on the part number, you will see the kit contents and a photo of each item included.

View in Catalog

Question About:	RV Builder Tool Kit
Email:
Your Name:
Question:

	Submit

Review Product:	RV Builder Tool Kit
Email:
Your Name:
Rating:
Comments:

	Submit

Component	Quantity	Price
12-00177Hand Riveting & Dimpling Tool	1	$406.00
12-00300Hand Rivet Squeezer Ths-15	1	$302.00
12-00320Squeezer Yoke Thy-30	1	$162.75
12-00605Avery Poly. Dimpling Mallet	1	$72.75
12-00608Avery Hand Seamer 3-1/2 Jaw	1	$83.80
12-00609Vice Grip Fluting Plier	1	$83.80
12-00611Avery Vise Grip Dimpler 3/32	1	$85.75
12-00613Avery Pop Rivet Dimpler 3/32	1	$42.50
12-00618Avery Back Riveting Plate	1	$125.75
12-00622Avery Speed Deburr-Csink Tool	1	$60.75
12-00629Avery Double Edge Deburr Tool	1	$35.99
12-00631Avery Shop Hd Rivet Gauge Set	1	$37.50
12-00632Avery Edge Rolling Tool	1	$39.50
12-00633Avery Rivet Length Gauge	1	$21.50
12-00741Avery Flush Swivel Rivet Set	1	$91.75
12-00816Air Drill (Pistol Type)4500Rpm	1	$1751.00
12-00867Avery 4Pc Drill Stop Set	1	$18.50
12-00868Avery Deluxe Dimple Die Kit	1	$277.95
12-00869Avery Pnuematic Air Tool Reg.	1	$30.50
12-00870Avery 3/32 Drive Pin Punch	1	$17.60
12-00871Avery 1/8 Drive Pin Punch	1	$17.60
12-00872Marvel Air Tool Oil 4 Oz.	1	$18.50
12-00873Avery 1/8 Dbl Offset Rivet St	1	$51.75
12-008753M Scotch Brite Deburr Whl 7A	1	$190.90
12-00876Avery Cut/Polish Wheel Kit	1	$115.99
12-00879Avery #40 X 3/8 Csnk Cutter	1	$22.50
12-00880Avery #30 X 3/8 Csnk Cutter	1	$21.50
12-00881Avery #20 X 1/2 Csnk Cutter	1	$22.50
12-00882Avery 6Pc Squeezer Set	1	$83.99
12-00883Avery 90 Degree Angle Drill Kt	1	$319.00
12-00884Avery 1/4 Cobalt Drill Bit	1	$6.70
12-00885Avery #12 Cobalt Drill Bit	1	$5.35
12-00886Avery #19 Cobalt Drill Bit	1	$4.35
12-00889Avery 360Deg Swivel Pop Rvt Tl	1	$76.75
12-01077A1006-234X Retainer Spring Beehive	1	$10.65
12-01079A1007-234X Ret Spring Quick Change	1	$11.50
12-01138Sheet Holders M-1/8 Cleco C-18	175	$1.69
12-01139Sheet Holders M-3/16 Cleco	10	$1.69
12-01140Sheet Holders M-3/32 Cleco	325	$1.69
12-01141Sheet Holders M-5/32 Cleco	10	$1.69
12-01143Side Grip Clamps P/N Sc-1/2-1	10	$4.35
12-01155Wiss Snips # M-1R	1	$45.85
12-011611/2 X 1/2 Side Grip Clamp	10	$3.75
12-01189Wiss Snips # M-2R	1	$39.60
12-01205Straight Rivet Set 1/8X 3-1/2	1	$16.50
12-01298Bucking Bar 1-3/4 Lb.	1	$35.50
12-01412Avery Micro-Stop Csnk Cage	1	$64.75
12-020042X Rivet Gun	1	$267.95
12-02062Steel Rules #1216	1	$15.50
12-02547Debur Handle E Type With 10 E100S	1	$21.50
12-02689Economy Bucking Bar Type B	1	$69.99
12-03900Unibit Step Drill # 3	1	$66.75
12-04214Super Cobalt Drill #40	2	$2.84
12-04217Super Cobalt Drill #30	2	$3.60
12-04219Super Cobalt Drill #27	1	$4.55
12-05200Drill Bits 12 Long 3/32	1	$10.50
12-05300Drill Bits 12 Long 1/8	1	$10.65
12-05406Curved Tooth File 12 Long	1	$32.50
12-07100-3Avery Back Rivet Set 4-1/8L	1	$61.75
12-10105Cleco Pliers	1	$12.50
12-14221Super Cobalt Drill #21	1	$4.40
12-183553M Riveters Tape 695 1 X 36 Yd Roll	1	$41.50
13-11400Standard Aircraft Handbook	1	$44.50
13-11625EAA Sheet Metal Building Basics	1	$45.50

Component	Quantity	Price
12-00177Hand Riveting & Dimpling Tool	1	$406.00
12-00300Hand Rivet Squeezer Ths-15	1	$302.00
12-00320Squeezer Yoke Thy-30	1	$162.75
12-00605Avery Poly. Dimpling Mallet	1	$72.75
12-00608Avery Hand Seamer 3-1/2 Jaw	1	$83.80
12-00609Vice Grip Fluting Plier	1	$83.80
12-00611Avery Vise Grip Dimpler 3/32	1	$85.75
12-00613Avery Pop Rivet Dimpler 3/32	1	$42.50
12-00618Avery Back Riveting Plate	1	$125.75
12-00622Avery Speed Deburr-Csink Tool	1	$60.75
12-00629Avery Double Edge Deburr Tool	1	$35.99
12-00631Avery Shop Hd Rivet Gauge Set	1	$37.50
12-00632Avery Edge Rolling Tool	1	$39.50
12-00633Avery Rivet Length Gauge	1	$21.50
12-00741Avery Flush Swivel Rivet Set	1	$91.75
12-00816Air Drill (Pistol Type)4500Rpm	1	$1751.00
12-00867Avery 4Pc Drill Stop Set	1	$18.50
12-00868Avery Deluxe Dimple Die Kit	1	$277.95
12-00869Avery Pnuematic Air Tool Reg.	1	$30.50
12-00870Avery 3/32 Drive Pin Punch	1	$17.60
12-00871Avery 1/8 Drive Pin Punch	1	$17.60
12-00872Marvel Air Tool Oil 4 Oz.	1	$18.50
12-00873Avery 1/8 Dbl Offset Rivet St	1	$51.75
12-008753M Scotch Brite Deburr Whl 7A	1	$190.90
12-00876Avery Cut/Polish Wheel Kit	1	$115.99
12-00879Avery #40 X 3/8 Csnk Cutter	1	$22.50
12-00880Avery #30 X 3/8 Csnk Cutter	1	$21.50
12-00881Avery #20 X 1/2 Csnk Cutter	1	$22.50
12-00882Avery 6Pc Squeezer Set	1	$83.99
12-00883Avery 90 Degree Angle Drill Kt	1	$319.00
12-00884Avery 1/4 Cobalt Drill Bit	1	$6.70
12-00885Avery #12 Cobalt Drill Bit	1	$5.35
12-00886Avery #19 Cobalt Drill Bit	1	$4.35
12-00889Avery 360Deg Swivel Pop Rvt Tl	1	$76.75
12-01077A1006-234X Retainer Spring Beehive	1	$10.65
12-01079A1007-234X Ret Spring Quick Change	1	$11.50
12-01138Sheet Holders M-1/8 Cleco C-18	175	$1.69
12-01139Sheet Holders M-3/16 Cleco	10	$1.69
12-01140Sheet Holders M-3/32 Cleco	325	$1.69
12-01141Sheet Holders M-5/32 Cleco	10	$1.69
12-01143Side Grip Clamps P/N Sc-1/2-1	10	$4.35
12-01155Wiss Snips # M-1R	1	$45.85
12-011611/2 X 1/2 Side Grip Clamp	10	$3.75
12-01189Wiss Snips # M-2R	1	$39.60
12-01205Straight Rivet Set 1/8X 3-1/2	1	$16.50
12-01298Bucking Bar 1-3/4 Lb.	1	$35.50
12-01412Avery Micro-Stop Csnk Cage	1	$64.75
12-020053X Rivet Gun	1	$214.95
12-02062Steel Rules #1216	1	$15.50
12-02547Debur Handle E Type With 10 E100S	1	$21.50
12-02689Economy Bucking Bar Type B	1	$69.99
12-03900Unibit Step Drill # 3	1	$66.75
12-04214Super Cobalt Drill #40	2	$2.84
12-04217Super Cobalt Drill #30	2	$3.60
12-04219Super Cobalt Drill #27	1	$4.55
12-05200Drill Bits 12 Long 3/32	1	$10.50
12-05300Drill Bits 12 Long 1/8	1	$10.65
12-05406Curved Tooth File 12 Long	1	$32.50
12-07100-3Avery Back Rivet Set 4-1/8L	1	$61.75
12-10105Cleco Pliers	1	$12.50
12-14221Super Cobalt Drill #21	1	$4.40
12-183553M Riveters Tape 695 1 X 36 Yd Roll	1	$41.50
13-11400Standard Aircraft Handbook	1	$44.50
13-11625EAA Sheet Metal Building Basics	1	$45.50
