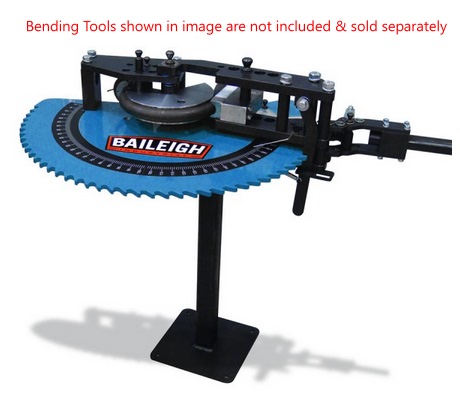

Baileigh Manual Tube Bender Rdb-050
$2824.00/Each
Part# 13-08973
MFR Model# 1006768
MFR Model# 1006768
Overview
|
The RDB-050 manual tube bender was designed as an affordable bender that has enough capacity for just about any chassis fabrication shop. The RDB-050 is revolutionary in design, function and capacity. The RDB-050, from Baileigh Industrial, is extremely powerful and can bend up to 2-1/2" OD mild steel with a wall thickness of .120" and 2" OD Chromalloy with a wall thickness of .120".
The most unique feature of the RDB-050 is that it has three selectable bending speeds. The proper speed for each application depends on the material type, OD and wall thickness. The RDB-050 manual tube bender has no dis-assembly or assembly needed to produce a bend. Simply walk up to the RDB-050 and put your tubing into the hook arm insert and begin bending. When the bend is complete, return the machine to the home position and pull your bend out, or position it for the next bend. The RDB-050 tube bender can bend up to 200 degrees and an anti spring back mechanism holds each bend in place as the operator ratchets forward. Tooling List - Sold separately - Call 1-877-477-7823 for pricing. |
Specifications
- Item Number RDB-050
- Minimum CLR 3"
- Minimum OD .75"
- Mild Steel Solid Rod 1"
- Mild Steel Pipe Schedule 40 Call for Details
- Mild Steel Round Tube Wall 2.5" (.120)
- Stainless Steel Round Tube Wall 2" (.120)
- Chromolly Round Tube Wall 2" (.120)
- Aluminum Round Tube Wall 2.5" (.120)
- Max. Clr 7"
- Power Manual
- Shipping Weight 290 lbs.
- Shipping Dimensions 44" x 27" x 42"
- Specifications subject to change without notice.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Is the stand included with the Baileigh Manual Tube bender?
Yes, the stand is included with the tube bender.
