Blue Pneumatic Air Hydraulic Riveter With Vacuum BP-50V

$944.00/Each
Quantity
Add to Wishlist
Part# 12-03430
MFR Model# BP-50V

Overview

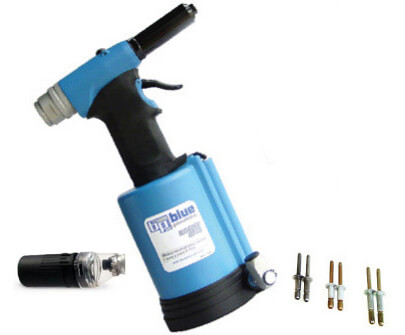

This one is loaded with pulling force at 3800lbs. This is a heavy duty air/hydraulic riveter. Big Blue sets rivets from 1/8 through 1/4 in all materials and is ideal for Monobolt/Magna-lok and other structural rivets. Its 7/8 stroke allows this rivet tool to pull most structural rivets in one stroke. More power and a forged aluminum cylinder means long life. Big Blue is built to last and last. Great for high production applications.

Rivet tool comes with nose pieces including 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 85-100 psi. Weight 5 lbs.

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Blue Pneumatic BP-50V unit pull cherry rivets?

It will pull Cherry "N" rivets but not the structural Cherry Max rivets.
