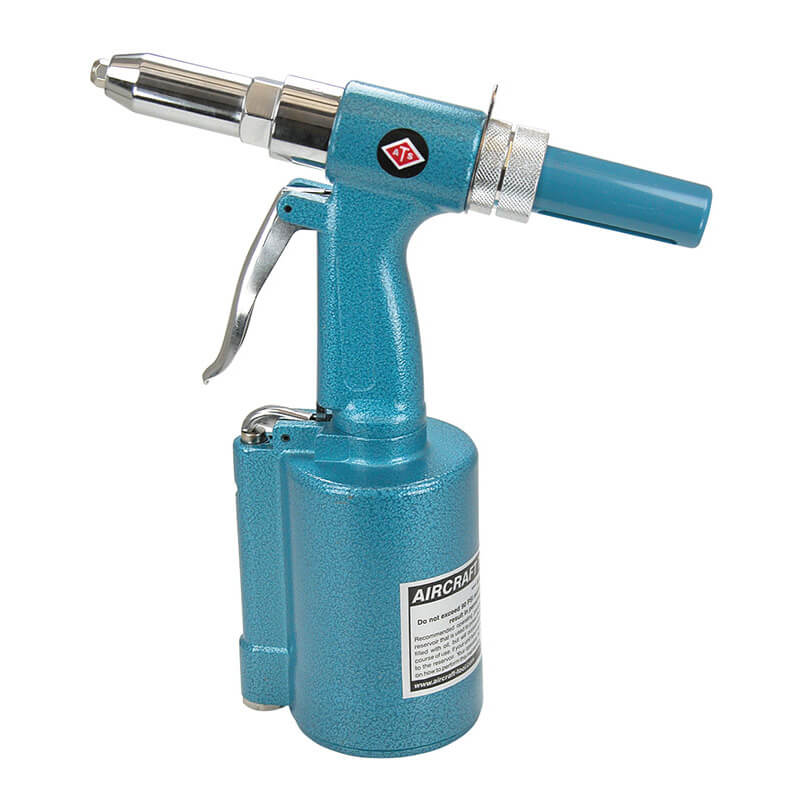

ATS Air Hydraulic Riveter

$159.85/Each
Quantity
Add to Wishlist
Part# 12-01423
MFR Model# ATS8806

Overview

Compact Riveter is lightweight yet delivers a whopping 2,300 lbs of pulling force to effortlessly pull up to 3/16" (4.8mm) steel rivets.

Comes complete with nosepieces for 3/32" 1/8", 5/32", and 3/16" rivets. Includes stem deflector for added safety.

Specifications

  • Pulling Force 2,300 lbs (1,045 Kg)
  • Rivet Capacity 3/16" aluminum or mild steel
  • Stroke Length .63" (16 mm)
  • Nosepieces: 3/32" (2.4 mm), 1/8" (3.2 mm), 5/32" (4.0 mm), 3/16" (4.8 mm)
  • Weight 3.26 lbs (1.48 kg)

Reviews

Excellent

Cliff E Verified Purchase

ATS Air Hydraulic Riveter

October 9, 2024

I needed a replacement rivet puller and this one works great. Pulls with a slower pull than my previous air unit thus no slamming of the tool due to kick back. Also uses less pressure to pull rivets, about 2/3 of what previous puller needed.

Glenn L Verified Purchase

ATS Air Hydraulic Riveter

February 26, 2023

Works great! I checked the hydraulic fluid level before operation and it at the proper level. Mind the psi limits on your compressor regulator. The stems fall forward onto the ground rather than in the hopper.

Juan B Verified Purchase

ATS Air Hydraulic Riveter

February 5, 2023

very useful tool

Lawrence E Verified Purchase

ATS Air Hydraulic Riveter

August 7, 2022

Very good gun for the price. It will not do the Cherry max rivets but for anything else its good. The only thing I wish that was on it was a swivel at the airline hookup.

Larry L
May 6, 2020

Great tool! Much better that the Chinese knock-offs on Ebay or at discount tool guys. Should last a very long time. The body is also slimmer than the cheap pullers, which helps it fit in tight places like inside of control surfaces on RV kits.

Jim -
February 28, 2020

The pneumatic riveter works well, and arrived quickly. thanks.

Marijan V
February 15, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this unit pull CherryMax rivets?

No, this unit (part number 12-01423) is not for use with CherryMax rivets.

Q: Does this require a compressor and if so what capacity?

Per the manufacturer: yes, and it required 70-80 PSI.

Q: Will this unit pull AVEX rivets?

Yes, this will pull AVEX rivets.

Q: Are replacement nose pieces available?

Yes, please contact our sales department for a special order quote.

Q: Where is it made? What is the warranty?

This is manufactured in Taiwan. Warranty is 1 year from date of receipt.
