Overview

Features

• Data record mode: Normal model or Peak hold mode.
• Normal record mode: Set sampling time from 1 second to 8 hours.
• Peak hold record mode: Set sampling time from 10 ms to 500 ms.
• Memory capacity of normal record mode: 1 GB to 16 GB.
• Memory capacity of peak hold record mode: 1000 data no. (max.)
• Under Peak hold record mode, if execute the “Data record“ function, the
• memory circuit will store 1000 data no. (max.) measuring data into the SD card
• per fast speed sampling time (10ms to 500 ms).
• Under Normal record mode, if execute the “Data record” function, will save the
• measuring data along the real time value (Year/Month/ Date/
• Hour/Minute/Second) into the SD card per normal sampling time (1 second to 8
• hours).
• After save the data into the SD memory card, it can be down load the data
• to the Excel directly, extra software is no need. User can make the further
• data analysis (graphic analysis) by themselves.
• Large LCD display with back light.
• 20 Kg, wide capacity, high resolution, high accuracy, high repeatability.
• 3 kind display unit: Kg, lb, Newton.
• Tension & compression capability.
• Peak hold (Max. load) can be held in display during make tension or
• compression measurement.
• Zero button can operate both for normal measuring & the “peak hold“
• operation.
• Full capacity zero (tare) control capability.
• Fast/Slow response time push button.
• Positive or reverse display direction select.

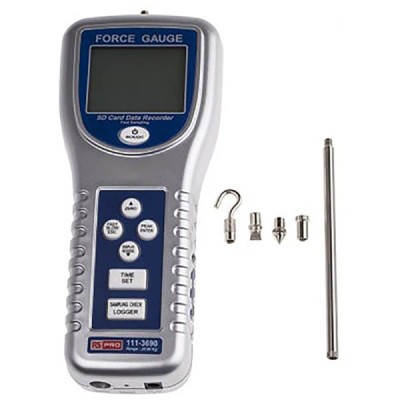

• Full line accessories (adapters) are included.
• Hand held & stand mounted gauges are available.
• Low power consumption gives long battery life.
• Build in low battery indicator.
• Microprocessor circuit & exclusive load cell transducer.
• Over load protection.
• RS-232 computer interface
• Built-in DC 9V power adapter input socket.

Documents

• Datasheet
