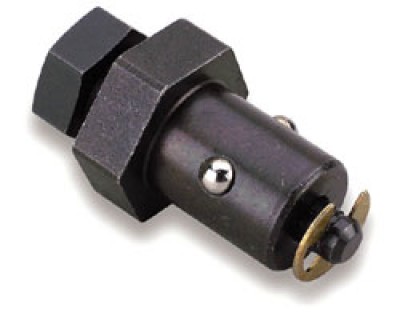

Ez-Beader Tubing Beaders

From $156.75 to $267.95
Tube O.D. Description Part Number Price Buy
3/4"
EZ-BEADER TP885D
12-00357
$156.75
Quantity
1-1/4"
EZ-BEADER TP885G
12-00359
$233.95
Quantity
1-1/2"
EZ-BEADER TP885H
12-00360
$267.95
Quantity
1-3/4"
EZ-BEADER TP885I
12-00361
$267.95
Quantity
2"
EZ-BEADER TP885J
12-00362
$249.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Compact design. Capable of tubing wall thickness from .035 to .065 thick.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I used the beader to make new beads on 5/8 I.D. formed tubes that came with an Airwolf oil filter kit. I suspect the tube supplied by Airwolf (which I had to shorten and therefore put a new bead on the cut end) is a fairly hard alloy of aluminum. The tool struggled a bit but with careful work and gradual step-ups in the amount of beading force applied, it did the job, made a useable bead. The joint does not leak. Nice tool, well made, struggles with hard tubes but prevails in the end.

Bob P
December 13, 2015

Great product and design - poor sales details - the 3/8 easy beading tool DOES NOT FIT with the standard wall thickness 3/8 AL fuel lines used in many/most aircraft. This was a waste of money for me, unless I want to drill out the fuel line to a thinner wall thickness to accept this tool.

Jonathan B
February 17, 2013

This is really the first substandard product I have received from Aircraft Spruce, and it is not up to aircraft standards - maybe OK for cars or plumbing. I definitely would not recommend it.

Roger O
March 26, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the appropriate EZ-beader work on 1/2 5052-0 Al tubing, or is it just suitable for 3003 Al tubing?

Per the supplier: No, 5052-O tubing is too hard, it will break the tool.
