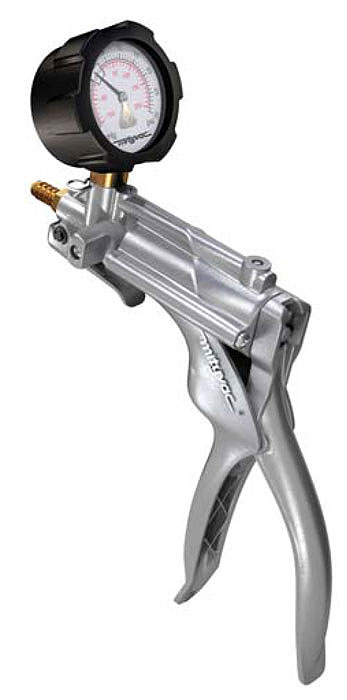

Silverline Elite Hand Vacuum / Pressure Pump With Gauge
MFR Model# MTY MV8510
Overview
|
Silverline Vacuum/Pressure Pump, 16cc w/ gauge Mityvac vacuum gauges are scaled 0 - 30 inches of Mercury (0 - 100 kPa). Compound gauges included on dual vacuum/pressure converter pumps are scaled 0 - 30 psi (0 - 200 kPa) pressure, and 0 - 30 inches of Mercury (0 - 100 kPa) vacuum. All Mityvac pumps produce vacuum at the front port. Dual converter pumps are capable of producing vacuum or pressure at the front port. A rotating knob on the side of the pump allows the operator to switch between vacuum and pressure. Dual converter pumps include a compound gauge for indicating levels of both. All Mityvac pump vacuum/pressure ports fit standard 1/4" (6.4 mm) ID tubing. |
Features
- Provides either vacuum or pressure with equal precision and convenience
- Modern, ergonomic design for comfortable, long-term use
- One-finger lever vacuum/pressure release
- Field serviceable – standard maintenance kits and replacement parts available
- Includes durable, accurate gearless diaphragm style pressure/vacuum gauge
- Durable die cast construction
Specifications
- Pump Displacement: 1 in3 (16cc) per stroke
- Max. Pressure: 30+ psi, 207+ kPa
- Vol. per Stroke: 1 cu. in. / 16cc
- Material: Aluminium / Zinc
- Gauge1: Yes
- Dual Converter2: Yes
- CE Certified: Yes
- Weight: 2.5 lbs 1.3 kg
- Country of Origin: China, Designed and quality controlled in the USA
Applications
- Vacuum & pressure related engine performance diagnostics and tune-ups
- Brake bleeding
- Fluid transfer, evacuation, and sampling
Documents
In The Box
- Silverline Elite hand vacuum/pressure pump w/ 2” (50 mm) compound gauge w/rubber boot
- Service Sheet
Reviews
Handle to cylinder shaft retaining pin fell out twice . Reinserts easily but should be tighter fit to stay in.
