- Photo may represent series and not specific product
- SHARE

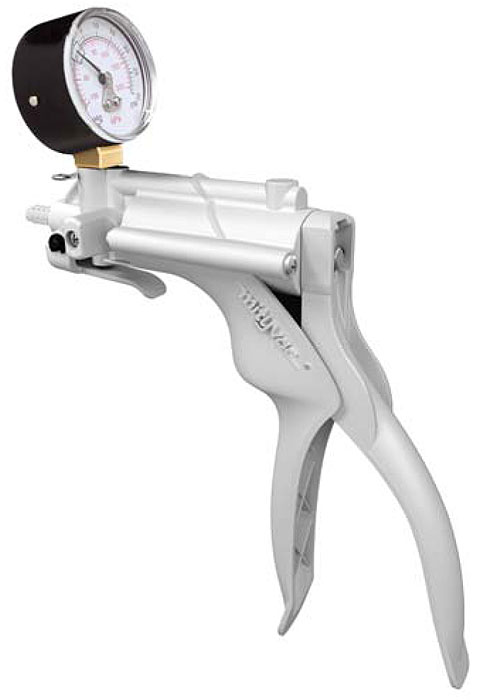

Selectline Hand Vacuum Pressure Pump With Gauge Dc
$119.75/Each
Part# 15-08423
MFR Model# MV8255
MFR Model# MV8255
Overview
|
Mityvac vacuum gauges are scaled 0 - 30 inches of Mercury (0 - 100 kPa). Compound gauges included on dual vacuum/pressure converter pumps are scaled 0 - 30 psi (0 - 200 kPa) pressure, and 0 - 30 inches of Mercury (0 - 100 kPa) vacuum.
All Mityvac pumps produce vacuum at the front port. Dual converter pumps are capable of producing vacuum or pressure at the front port. A rotating knob on the side of the pump allows the operator to switch between vacuum and pressure. Dual converter pumps include a compound gauge for indicating levels of both. All Mityvac pump vacuum/pressure ports fit standard 1/4" (6.4 mm) ID tubing |
Features
- Produces vacuum or pressure at the turn of a switch
- Comfortable ergonomic design
- One-finger trigger vacuum/pressure release
- Pressure and vacuum are created on the squeeze stroke for superior accuracy and control
- Includes durable, accurate gearless diaphragm style compound vacuum/pressure gauge with pinned connection for 360° rotation
Specifications
- Pump Displacement: 1 in3 (16cc) per stroke
- Max. Pressure 30 psi, 207 kPa
- Material: PVC
- Vol. per Stroke: 1 cu. in. / 16cc
- Gauge1: Yes
- Dual Converter2: Yes
- CE Certified: Yes
- Weight: 11.5 oz 326 g
- Country of Origin: China, Designed and quality controlled in the USA
Applications
- Vacuum & pressure related engine performance diagnostics and tune-ups
- Brake bleeding
- Fluid transfer, evacuation, and sampling
Documents
In The Box
- Mityvac Selectline hand vacuum/pressure pump w/2” (50mm) diameter gauge
- Service Sheet
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
