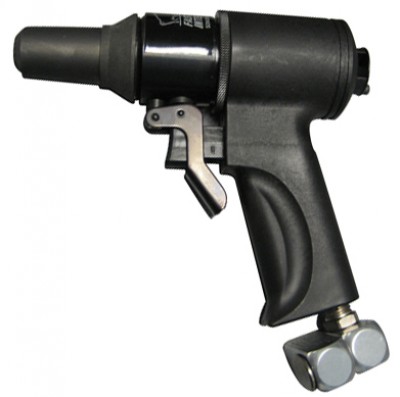

PneumatIC-Hydraulic Blind Riveter

$991.00/Each
Quantity
Add to Wishlist
Part# 09-01070
MFR Model# PT-100-1

Overview

The PT-100-1 power riveter, no larger than a compact drill motor, will install virtually any straight-pull blind rivet with installation loads of 3500 lbs. or less. All blind rivets from 3/32" dia. up to and including 1/4" dia. CherryMax rivets can be installed with the P-100-1. It utilizes a patented two-valve hydraulic pump actuated by 90 to 130 PSIG air pressure. Unlike most riveters, the P-100-1's collect/jaw assembly remains stationary while the outer sleeve-nosepiece assembly is hydraulically moved, creating sufficient load to install the rivet. Furnished with three nosepieces for 3/16", 3/32", 1/8"& 1/4" rivets. Wt. 29 oz.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this pneumatic - hydraulic blind riveter pull Cherrylock rivets?

The unit has a 4000 lb capacity and pulls CherryMax rivets. Cherrylock rivets should not be a problem.

Q: What are the dimensions or the rivet gun?

This measures out to, 7" Length, from the bottom of the handle to the top of the gun. 7-1/2" Length, from the nose point to the back of the gun. 0.90" Thickness of the handle. 2" Diameter of the back of the gun. (widest point on the entire unit).

Q: In what country is this pneumatic-hydraulic blind riveter tool manufactured?

It is made in the U.S.A.
