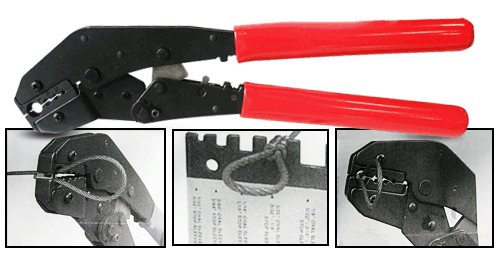

Locoloc Handswaging Tool
MFR Model# 1-3SBHS
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Locococ #1-3-SBHS Hand Swager – This tool is an outstanding small hand tool, and it does a great job of swaging small sleeves. This is a (4) cavity tool, swaging sleeve sizes 1/32”, 3/64”, 1/16”, 3/32” and #12 SEISMIC. Ratchet mechanism will not release until swage is complete. Swages copper and aluminum sleeves only. Usage instructions and swage gauge included in each tool. Each LOCOLOC Swager is supplied with a gauge. Application: Copper Oval Sleeves, Copper Oval Plated Sleeves and Aluminum Oval Sleeves |
Reviews
Verified Purchase
1-3Sbhs Handswager Tool
Solidly built and works well just be sure the screws, holding each jaw insert, are tightened securely to avoid slippage and a sub-standard crimp.
Verified Purchase
1-3Sbhs Handswager Tool
This is an excellent tool. It has been producing perfectly on cable and electrical terminals and is going to last for many years. Absolutely worth the investment to get good work done quickly and correctly the first time.
If you are buying this tool to swage 3/32 sleeves, I would recommend a different tool. This tool looks well made but the jaws are not strong enough to crip standard MS51844-83 sleeves on 3/32 cable without misalignment of the jaws and a bad swage. I am a certified aircraft mechanic and purchased this for a specific project that required swaging 3/32 sleeves. I did find a temporary work around where you can start the swag, then clamp the jaws of the tool together side by side with a clamp or vice grips just enough to keep the jaws aligned and then finish the crip. It works well if you can keep the jaws aligned but they are not able to do it on their own.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions of the holes when closed are:
3/32 Sleeve hole = .235"
1/16 Sleeve hole = .17"
3/64 Sleeve hole = .142"
1/32 Sleeve hole = .09"
No, this tool cannot swage the MS20664C-3 cable terminal.
