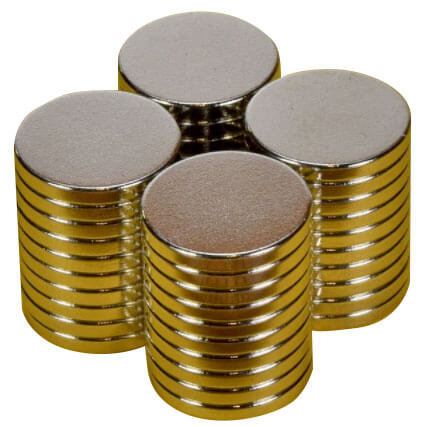

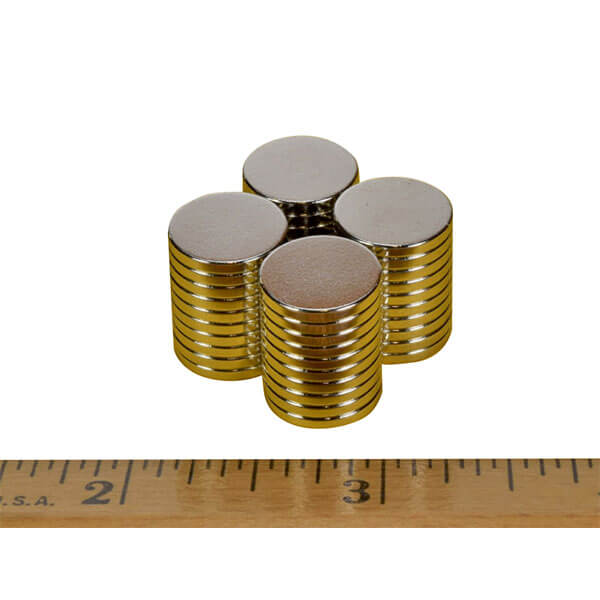

Magnetic Sheet Metal Clamp 1/2 Dia X 1/16 Thick

$1.50/Each
Quantity
Add to Wishlist
Part# 12-05104
MFR Model# D81

Overview

Great general purpose discs. They are excellent for arts and crafts applications that require a strong, thin disc. Just 1/16" thick, but still a sturdy disc. They are an excellent choice for magnetic therapy. The D81 is deceptively strong for it's size.

Specifications

  • Dimensions: 1/2" dia. x 1/16" thick
  • Tolerances: ±0.004" x ±0.004"
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.0532 oz. (1.51 g)
  • Pull Force, Case 1: 3.10 lbs
  • Pull Force, Case 2: 14.00 lbs
  • Surface Field: 1601 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe
