Overview

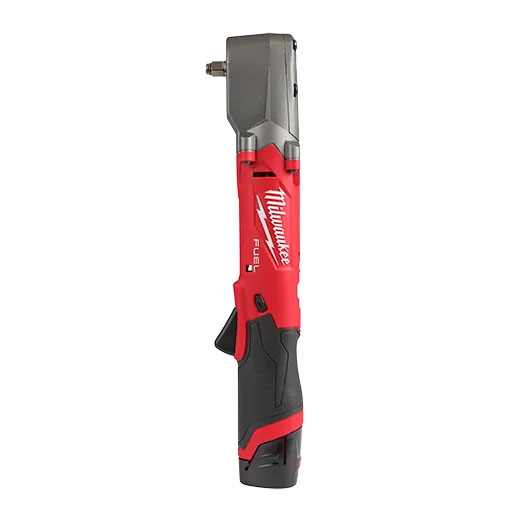

Our M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. You’ll be able to easily remove stubborn bolts and fasteners with up to 220 ft-lbs. of nut-busting torque without kickback. This cordless right angle impact wrench also gives you maximum access with ultimate control in hard to reach applications. Our durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2”. This allows you to be more productive by decreasing your need for socket extensions often used with pistol-grip impact tools. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for maximum precision, and Mode 4 is equipped with Auto Shut-off in forward and Bolt Removal Mode in reverse. Our Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15 ft-lbs. of torque. Bolt Removal Mode provides more control by drastically slowing down RPMs once the bolt is loosened. The REDLINK PLUS™ Intelligence ensures you achieve maximum performance and protection against overloads, over-heating, and over-discharge. This cordless ⅜” impact wrench is powered by MILWAUKEE® M12™ REDLITHIUM™ Battery Packs (not included), which are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

Features

• 1 - REDLITHIUM™ Battery Pack: REDLITHIUM™ Batteries last longer, think faster, and work harder than all other professional LITHIUM-ION batteries. Built to withstand the harshest environments, REDLITHIUM™ batteries deliver more work over the course of your day and over the life of the battery.
• 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.
• 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

• Battery Specs:
• Voltage: 12V
• Battery Type: 12 Volt Lithium Ion
•

• Product Specs:
• Wrench Type: Right Angle
• Anvil Type: Friction Ring
• IPM: 0 - 3,600
• Maximum Torque: 220 ft-lbs
• Head Profile: 2.2 in
• Fastening Torque: 200 ft-lbs
• Nut-Busting Torque: 220 ft-lbs
• Tool Warranty: 5 Year Tool, 2 Year Battery
• Power Source: Cordless
• Motor Type: POWERSTATE Brushless
• Material Composition: Aluminum
• Length: 13.89 in
• Weight: 3.05 lb
• Height: 2.81 in
• Width: 2.32 in
• Brushless: Yes
• Battery System: M12
• Chuck Type: Not Applicable
• Chuck Size: Not Applicable
• DRIVE CONTROL: 4-Mode
• Maximum RPM: 3000 rpm
• RPM Range: 0 - 3,000

Benefits

• POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
• A 2.2" head profile design allows for more access in tight spaces
• Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
• Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
• The long body profile of 14.17" allows for more access in hard to reach spaces Designed with an impact mechanism that prevents kick-back
• LED light to illuminate the work area
• Premium rubber overmold withstands corrosive materials and provides increased comfort when in use

Documents

• Operator Manual (PDF)
• Service Parts List (PDF)

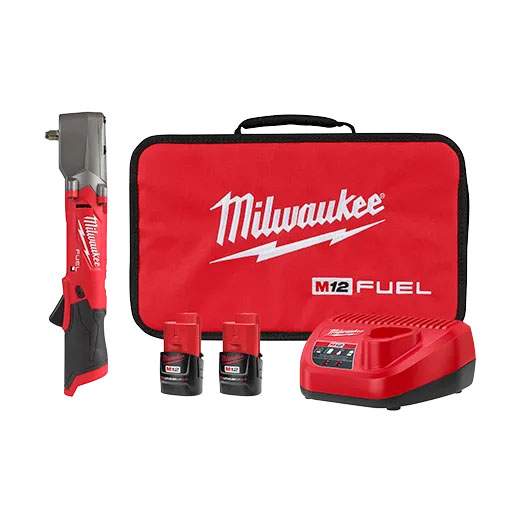

In The Box

• (1) M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring (Bare Tool)(2564-20)
• (2) M12™ REDLITHIUM™ CP2.0 Battery(48-11-2420)
• (1) M12™ Lithium-ion Battery Charger (48-59-2401)
• (1) Contractor Bag
